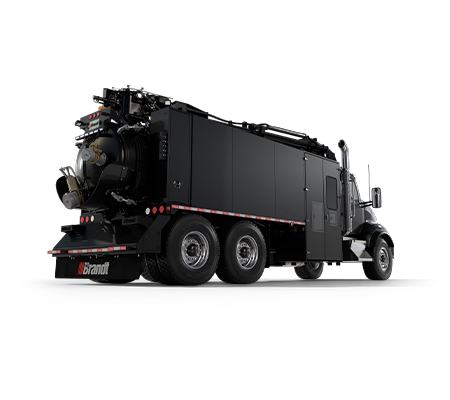

Productivity. Precision. Agility. The all-new Brandt Hydrovacs deliver them all.

With a lightweight design and large tank capacity, the Brandt hydrovac delivers maximum road-legal loads every time. The real-time measurement of water and overall truck weight allows you to make quick, informed decisions, which reduces the risk of damage or overweight penalties on the road.

Request a Quote

More Productivity

Work faster and carry more with accurate load management and an innovative tank design to ensure your efficiency and productivity.

More Uptime

With accessible maintenance points, replaceable wear parts, and components designed for harsh conditions, Brandt Hydrovacs are purpose built to work longer.

Low Cost Of Operation

Brandt Hydrovacs complete more work at less cost with fuel-efficient performance, more payload capability, and low noise levels.

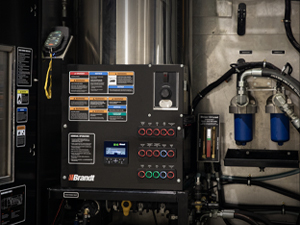

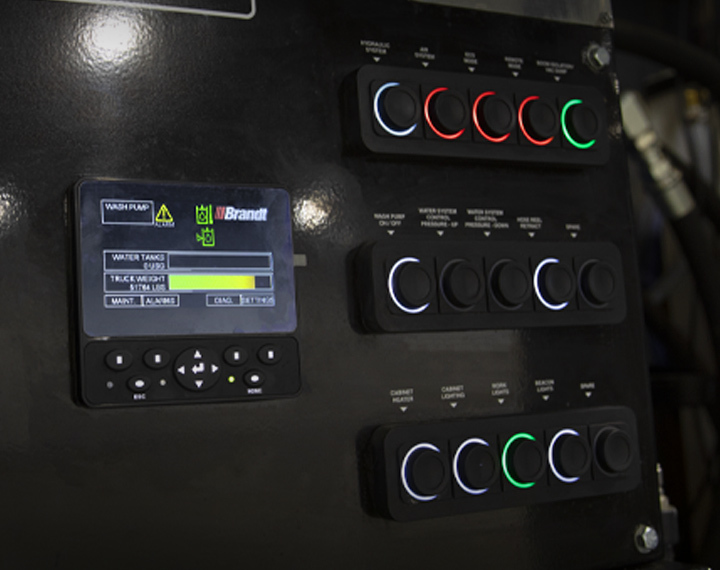

Accessible and Protected System Controls

  • All functions are controllable from the work area with multiple locations to operate.
  • Engage work lights, hydraulics, and wash pump without unnecessary trips around the unit.
  • A fault-code display helps troubleshoot any issues that might arise.
  • Marine-grade controls are temperature, moisture, and dirt resistant.

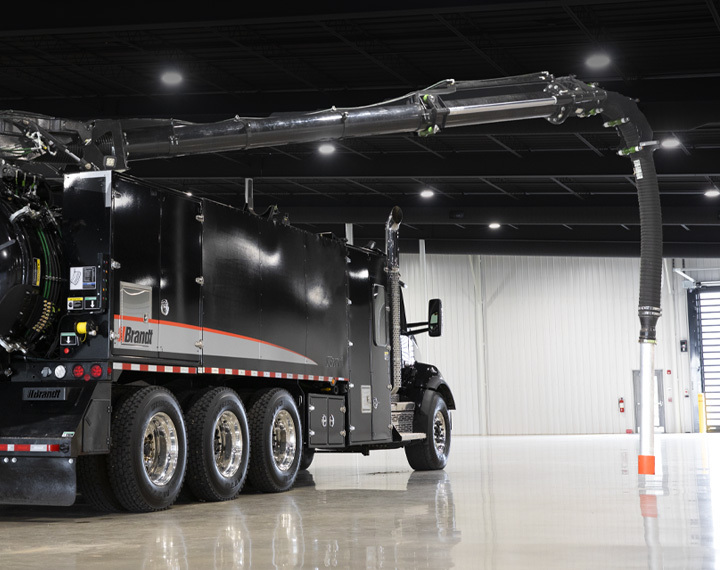

Industry-Leading Boom Reach

  • The 28-ft. boom is the longest in the industry, extending your capabilities on tough-to-reach sites.
  • Stronger, lighter boom design reduces tare weight and chances of plugging, maximizing efficiency.
  • The turret features full abrasion-resistant plate steel construction for longer life.
  • A replaceable wear liner reduces debris build up and lasts much longer than rubber flex hose.

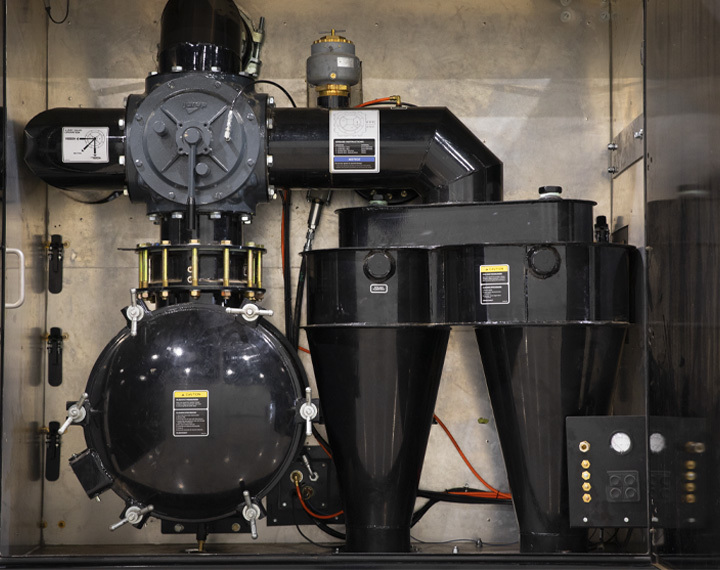

Industry-Leading Vacuum System

  • Innovative vacuum system uses a large blower and is designed for less air restriction.
  • Increased vacuum performance at lower RPMs reduces noise and saves fuel.
  • Operators can maximize output to rival the performance of larger units.
  • And you can even use the vacuum system with the tank hoisted.

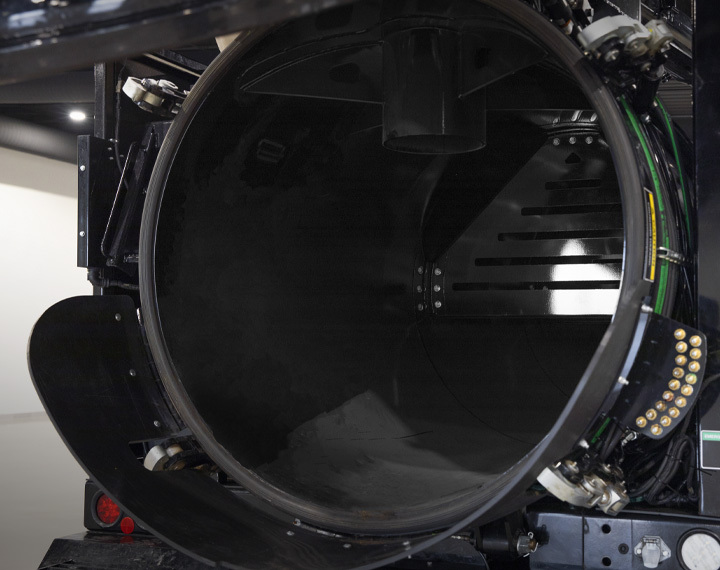

Large Debris Tank

  • Separate water and debris tanks maximize legal payload and maintain even weight distribution.
  • Operators have the ability to pressure offload onto another truck, landspread or dump the debris.
  • Tank features a rear door hydraulic safety lockout to use when servicing or washing.
  • Powder-coated tank with wear liner under the turret protects against corrosion and impact damage.

Features

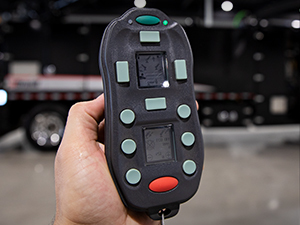

Wireless Remote Control

Live scale weight and water level read outs, water pressure, and truck RPM control are included on the display, plus there's remote access to quick start-up, blower on/off, and an emergency stop feature.

Operator Warming Cabinet

Storage cabinets include a heated enclosure on the work side of the truck for the operator to warm up, as well as in-bumper storage and a vertical storage rack for dig tubes.

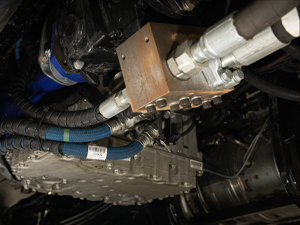

Innovative Dual Power Take off

A dual PTO powers a 4,000 CFM blower capable of variable performance for quiet operation and fuel savings, or matching output levels of larger hydro excavators.

Optimized Water System

The optimum-sized water pump and boiler provide increased efficiency and productivity with unmatched performance. Plus, the quick-fill poly water tanks save time and weight.

Top-Of-Tank Access Ladder

Independent grab points ensure easy access to the top of the tank, with a progressive entry walkway and full-length non-slip area integrated into the top of the debris tank.

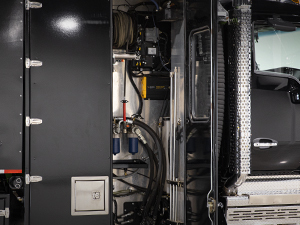

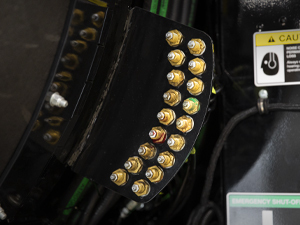

Quick On-Site Servicing

Easy access to service and maintenance points allow for quicker on-site servicing. And remote sight glasses, grease lines, and oil drains save even more time.

Cold Weather Package

Winter-friendly components ensure year-round operation in colder climates. Anti-freeze system, with recovery, allows outdoor parking without damaging the water pump and lines.

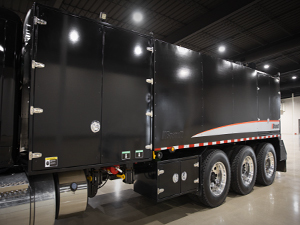

Available Rebranding Space

Both sides of the hydro excavator are left blank and unobstructed, allowing you room to rebrand the vehicle to showcase your company’s name and services.

Progressive Dig Tube to Turret Diameter

The flexible 8" dig hose connects to a solid 10" boom tube feeding the 12" turret opening to reduce plugging and act as a secondary vacuum chamber for increased performance. Full abrasion-resistant plate construction on the turret—an industry first—delivers longer component life. And the boom isolation valve breaks boom vacuum in emergencies.
Discover What Brandt Hydrovacs Can Do      Talk to a Specialist

Specifications

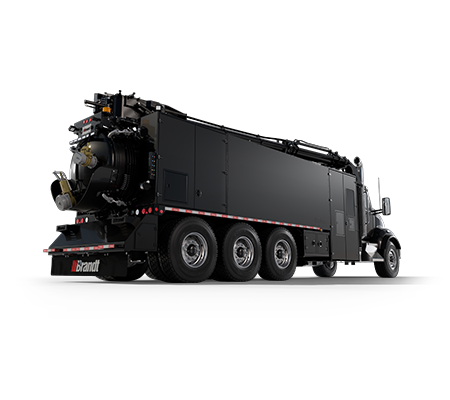

  • HX120

  • Tare Weight

    • starts at 44,000 lb

  • Debris Capacity

    • 11.6 Cubic Yards

  • Water Capacity

    • 1,150 USG

  • Wash System

    • 16GPM @ 3,000 PSI

  • Vac System

    • Hibon 840 4,000 CFM Blower

  • Dig Tube & Boom

    • 8" Flex Hose, 10" Boom Piping, 12" Boom Turret

  • Boom Reach

    • 340 Degree Rotation, Extendable to 28 Feet

  • Boiler

    • Purpose Built 705K BTU
Show More +

VALUE-ADDED OPTIONS

Get the most out of your hydrovac with configurations that maximize your productivity. View the product sheet below for a complete list of value-added options.

Camera Package

Offers optimal visibility and safety on the job site. Features 4 cameras mounted on the front, rear, driver's side, and passenger curbside.

Remote Hose Storage Package

The top mounted remote hose tray is easily accessible from the rear access platforms without having to climb on top of the truck, and holds 3 sections of 6" x 20' hose.

Cyclone Quick Cleanout

Flush system hoses mounted to the top of the cyclones enable wash out of any dirt or debris inside them.

Dig Wand Package

Includes two 5' long wash extensions with quick connect ends, rotating "Ripsaw" nozzle, and wash "Trigger Gun" with quick connect end.

High Voltage Contact Safety

High voltage detection shut down system is located on the boom.

Fluid Level Indicator

High visibility electronic light indicator shows level of material in both the debris and freshwater tanks.
