SCRAP MATERIAL HANDLER

Overview Features Specs Gallery Resources

Brandt material handlers deliver the productivity and precision you depend on.

The Brandt BMH40A wheeled scrap material handler provides the scrap industry with a North American-built-and-supported 40-ton-class machine. It is easy to maintain, delivers excellent cycle times and fuel efficiency, and has unmatched dealer and service support.

Request a Quote  View Specifications

More Productivity

Do more work in less time with high-quality components and technology to lighten your load. This unit helps you make the most of every moment on the worksite.

Increased Uptime

Second-to-none service and support paired with easy-to-maintain components means more uptime from your machine.

Low Cost Of Operation

Purpose built to deliver class-leading fuel efficiency and excellent cycle times, the BMH40A maximizes your return on investment.

Fast, Easy Operation

  • Industry-proven Final Tier 4 John Deere PowerTech 6.8L engine delivers 223 hp at 1900 RPM.
  • Dual variable displacement hydraulic pumps provide a combined flow rate of 62.3 GPM.
  • Market-leading swing torque and swing speed, fast and smooth boom/arm and attachment functions.
  • Electronic-over-Hydraulic (EH) system delivers maximum efficiency through ideal flows and pressures.

Quick, Convenient Maintenance

  • Easy-to-maintain Deere components plus a vast North American dealer network means limited downtime.

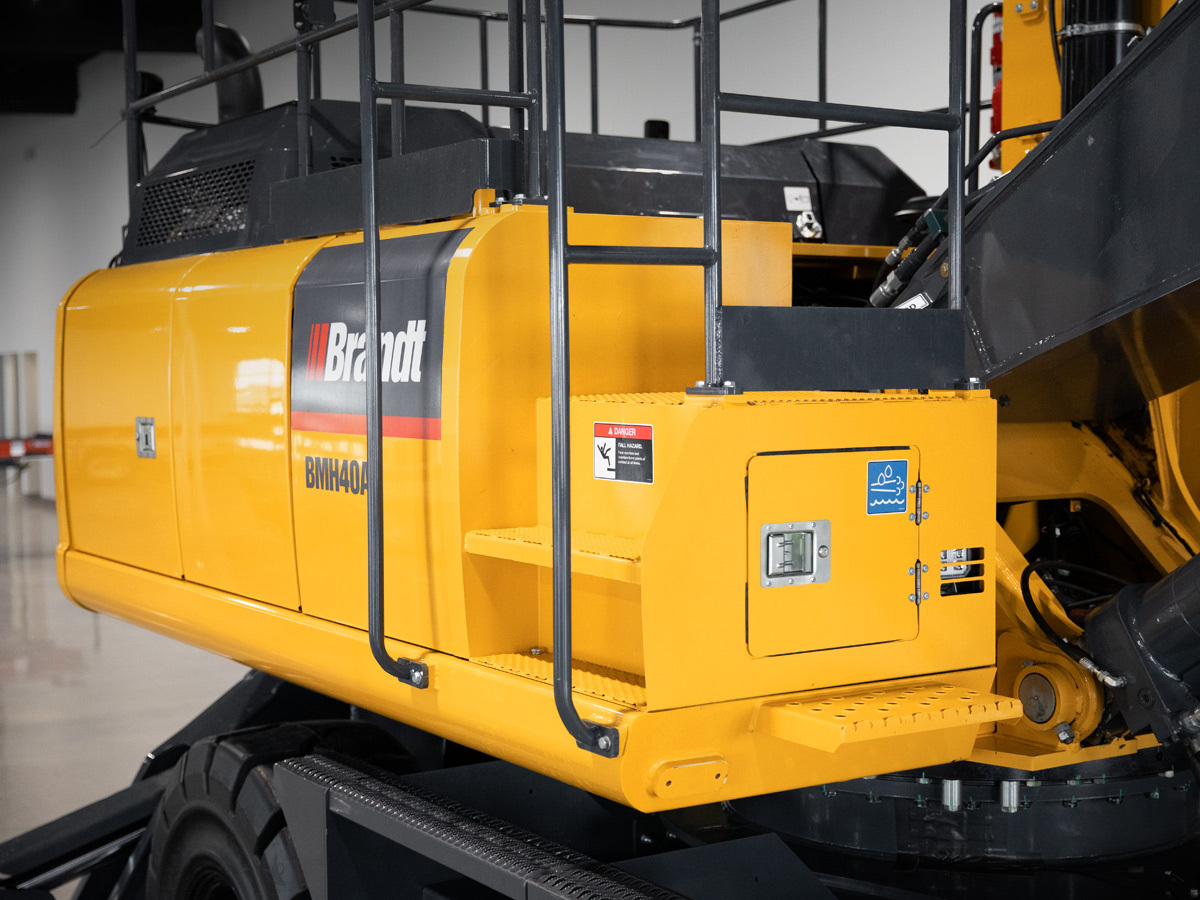

  • Get quick access to engine oil, fuel, and hydraulic oil filters on the right side of the machine.
  • Programmed reversing cooling fan—with automatic or manual activation—keeps radiators free of debris.
  • All undercarriage grease points are easily accessible, making daily circle checks a breeze.

Cost-Efficient Operation & Ownership

  • System Enhancing Third Cylinder counteracts 90% of boom/arm weight, reducing fuel consumption when lifting.
  • A nitrogen-charged cylinder assists boom operation, reducing fuel consumption up to 20%.
  • Pre-programmed operating modes auto adjust engine power for maximum fuel economy or performance.
  • Automatic idle and shutdown feature saves fuel when machine is not in active state.

Multiple Safety Features

  • Full perimeter handrails on top of machine and cab platform with ground access on all four sides.
  • Dual underslung boom and arm cylinders with anti-fracture check valves to prevent load drop.
  • Removable arm hydraulic line guarding allows for easy attachment switching and protects lines.
  • Factory-programmed rotary arm encoders ensure the grapple does not hit the cab when working.

North American Built And Supported

The BMH40A is made in North America and is supported by the coast-to-coast Brandt dealer network. This world-class heavy-lifter delivers unmatched productivity with 24/7/365 support by experienced John Deere-certified technicians, plus easy-to-find components for less downtime for you.

Features

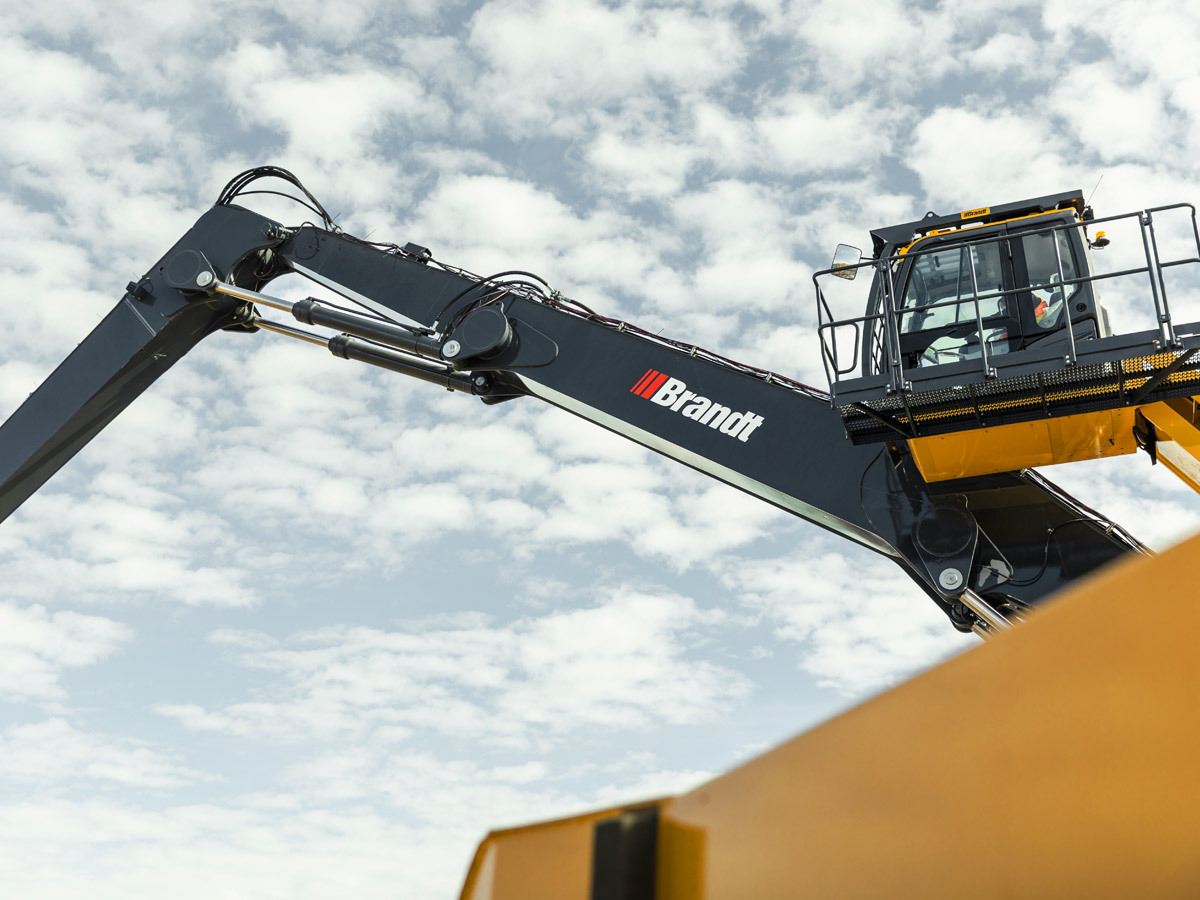

Boom And Arm

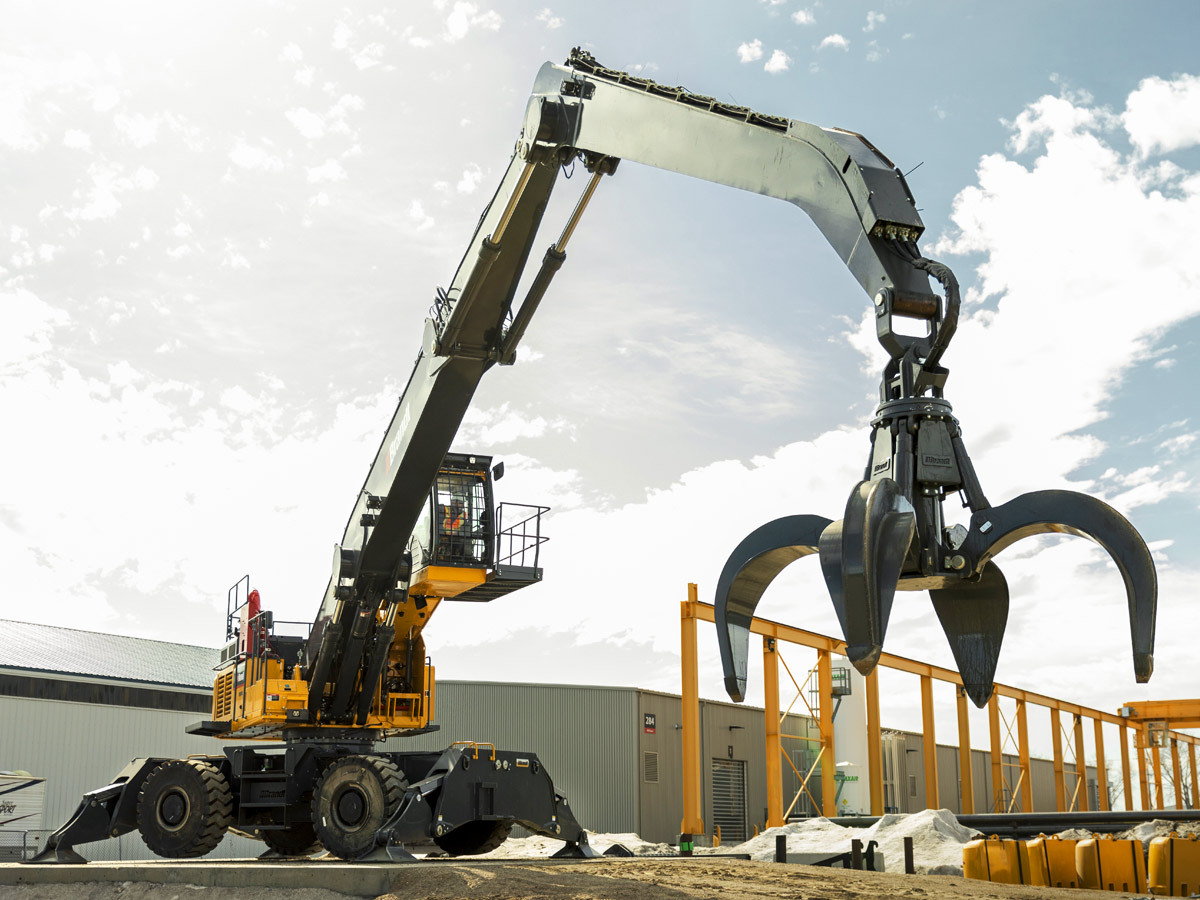

The straight boom and dipper-style (droop nose) arm are optimized for productivity in scrap, and steel hydraulic lines are used wherever possible to increase longevity.

Joystick Steering

The configurable joysticks steer the machine, improving usability and productivity.

Magnet Power Supply

A 20 kW generator comes standard on every BMH40A with an electrical supply line to the end of the stick. The quick-connect magnet electrical plug is protected to prevent damage.

Rear And Boom-Side Cameras

Standard rear and boom-side cameras reduce operator blind spots, and dedicated view screens eliminate the need to toggle between camera views.

Oscillating Steering Axle

The lockable oscillating front axle provides better ground contouring when driving with the upper house in line with the undercarriage.

Operator Comfort

Easy-access, ergonomic machine controls are customizable, promoting less hand movement for the operator. Leather heated/cooled adjustable air ride seat keeps operators comfortable.

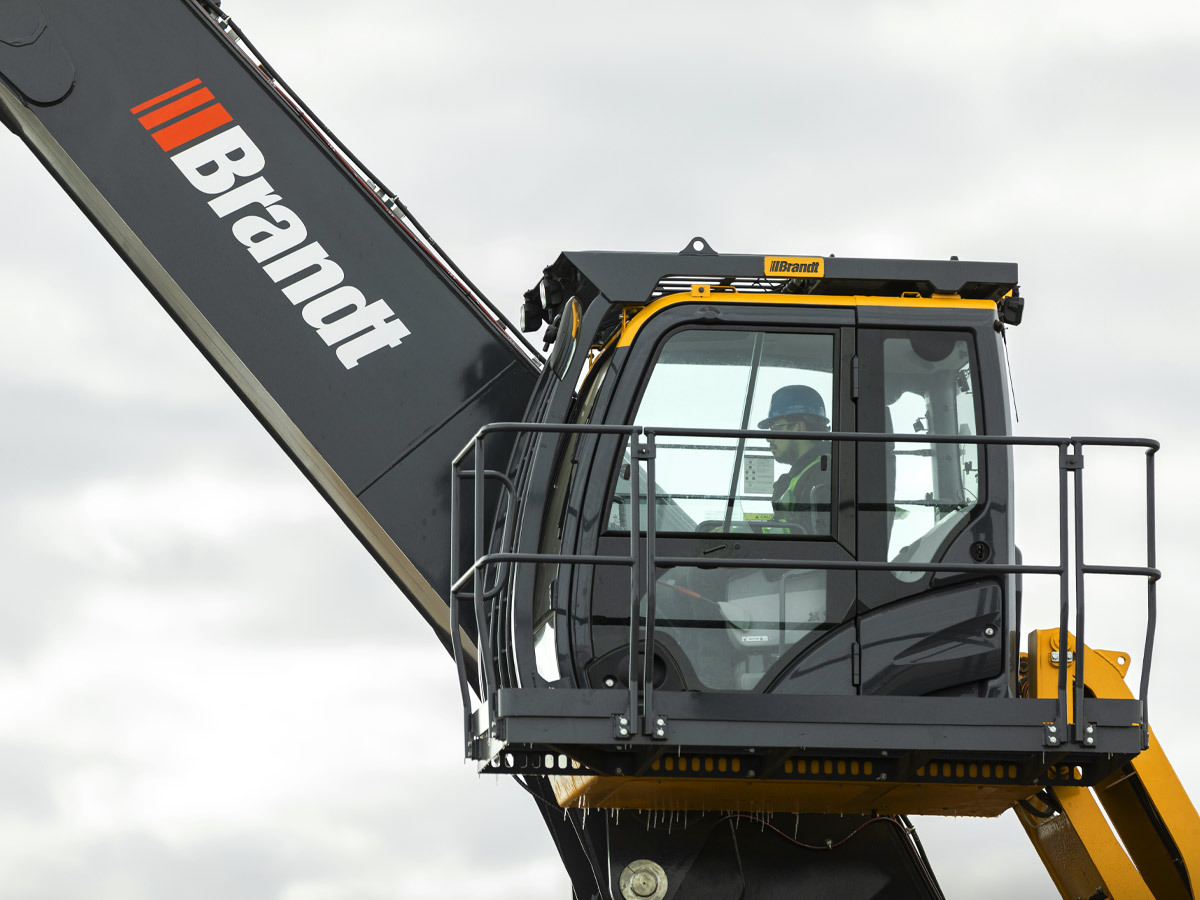

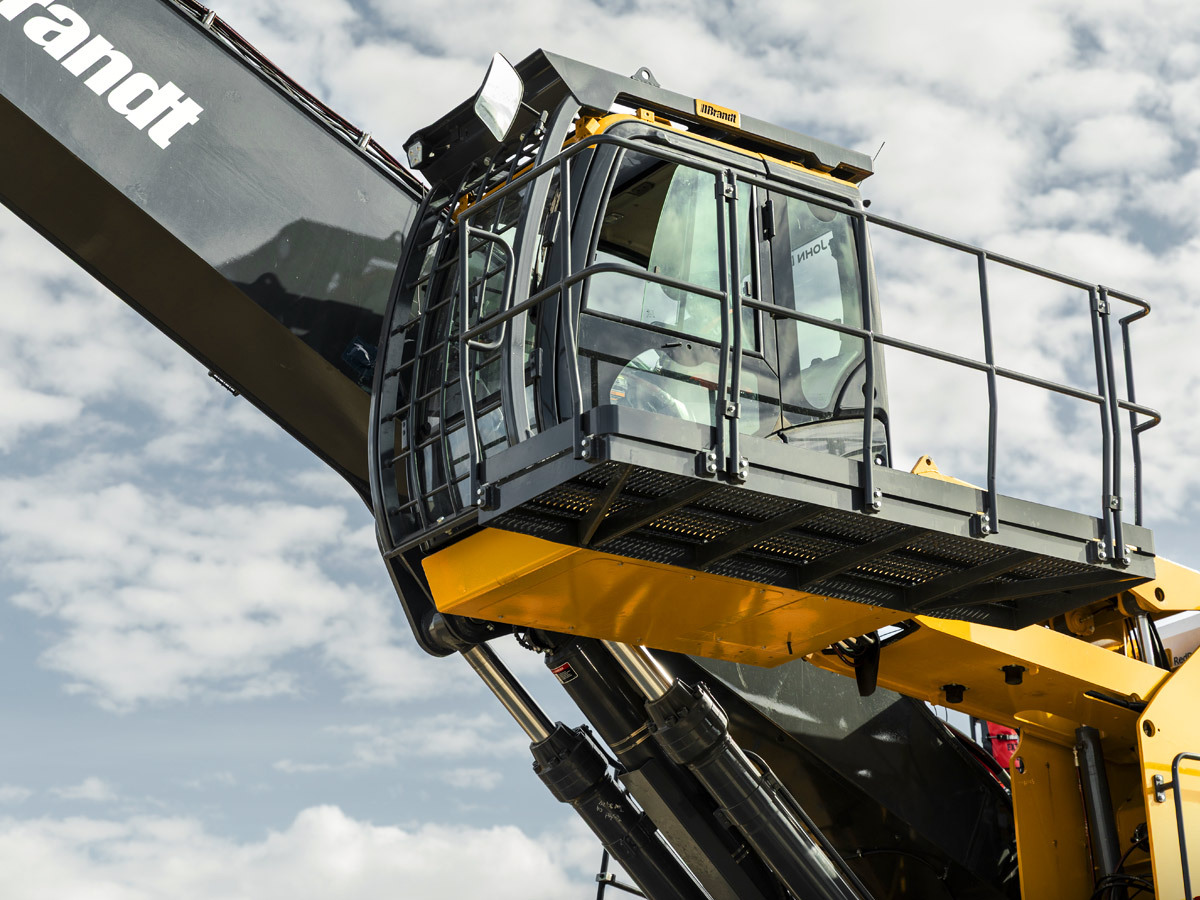

Cab Riser

Operator eye level is at 19' when the cab is fully raised, up to 12" higher than other competitors, providing improved sightlines into rail cars or trailers.

Speed Drivetrain

The wheeled undercarriage allows for fast movement from pile to pile, and the 2-speed hydraulically driven transmission features 4-wheel drive, and max speed of 18km/hr or 11 mph.

Discover What The BMH40A Can Do      Request a Quote

Specifications


  • BMH40A

  • Engine

    • John Deere PowerTech™ PSS 6.8L

  • Operating Weight

    • 38,736 kg (85,400 lb)

  • Maximum Reach

    • 16 m (52')

  • Swing Speed

    • 8 RPM

  • Swing Torque

    • 90 500 Nm (66,749 lb-ft)

  • Maximum Rated Hydraulic Flow

    • 236 L/m (62.3 gpm) x 2

  • Maximum Hydraulic Pressure

    • 35,852 kPa (5200 psi)

  • Magnet System

    • 20 kW
Show More +

VALUE-ADDED OPTIONS

Fire Suppression System

Optional powder fire suppression activates when flame is detected in engine bay, or it can be activated from ground level.

Auto Greaser Package

An optional auto grease system keeps upper house maintenance points in the boom, arm, and cab riser lubricated.

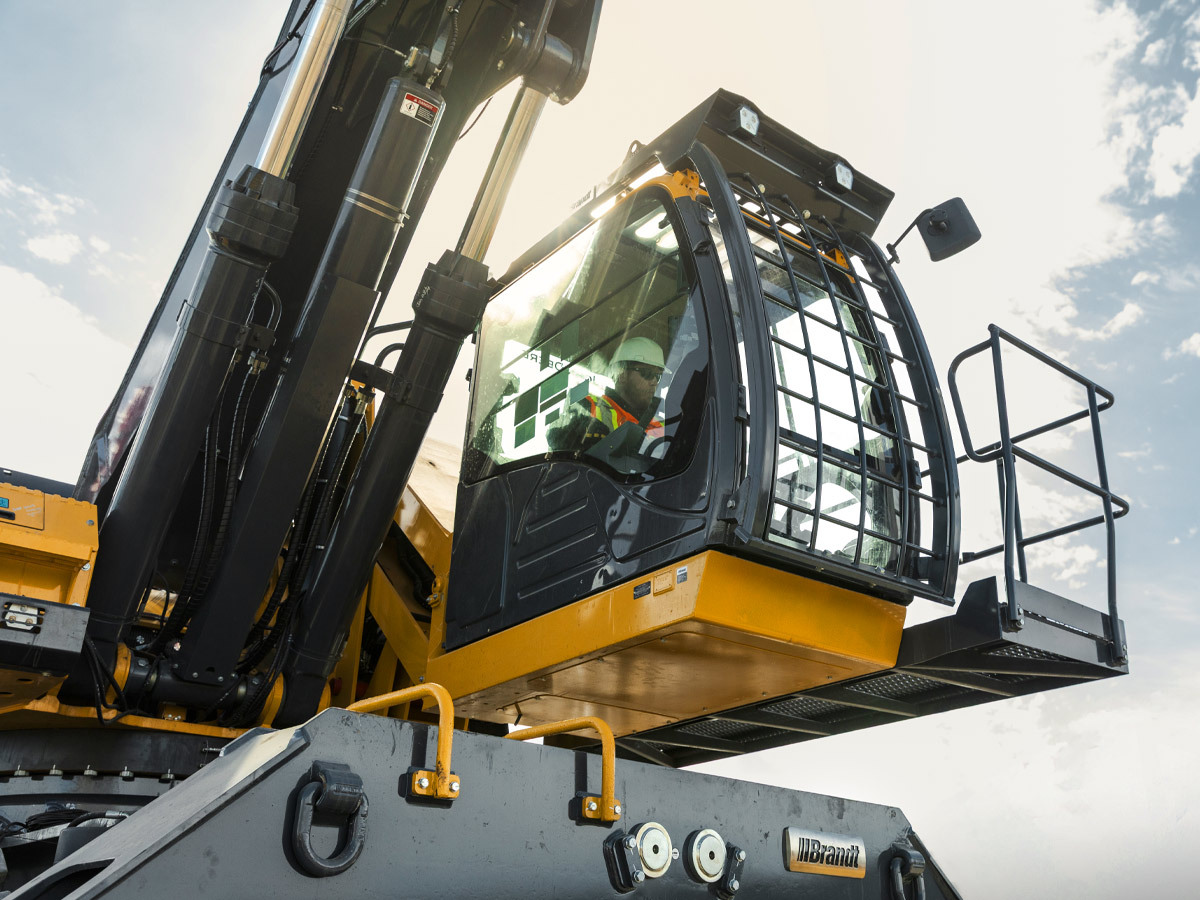

FOG & Ballistic Glass

Falling Object Guards (FOG) are available to keep operators safe from debris. Standard polycarbonate front window with the option for boom side and driver side windows.

Tire & Wheel Selection

The choice of single solid rubber tires or dual solid rubber tires with spacer rings for added stability allows greater customization to meet your needs.

Radiation Detection

The factory-installed CRICKET GRAPPLE’s revolutionary design provides optimal detection capability for low-intensity radioactive sources.
