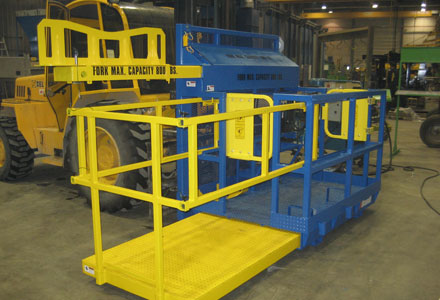

The Roller Change Out Lift has made a big impact in the Potash Industry on the safety and productivity for changing out rollers and idlers underground. Working alongside the customer, Brandt developed a specialty man basket certified for use with OEM forklifts. This tool allows the operator to safely navigate, lift and positions all the parts and tooling required for the task.
Specifications
| Roller Change Out Lift |
| Belt Width | 60 in |
| Extending Floor Capacity | 400 |
| Fork Lifting Capacity | 800 |
Features
Hydraulic Retractable Platform
- With a hydraulic retractable platform, the baskets can easily maneuver throughout the mine.
Integrated System
- Hydraulic activated lifting platforms allow for ergonomic safe handling in around belt when conducting upper and lower roller changes
- Integrated rails and lanyard points keep the workers safe
Hydraulic Cylinders
- The Man Basket is equipped with two hydraulic cylinders that allow the operator to use the equipment easily and effortlessly.
Specifications
- Must only be used on approved model forklifts
- Product Specification meets or exceeds OH&S Standards and Mining Standards
- Standard Conveyor/Belt Width is up to 60" (can be configured for other sizes)
- Extending Floor Capacity 400 lbs. (dependent on forklift)
- Fork Lifting Capacity 800 lbs. (dependent on forklift)
- Hydraulic Supply quick couple to forklift auxiliary output
