Vögele Road Pavers

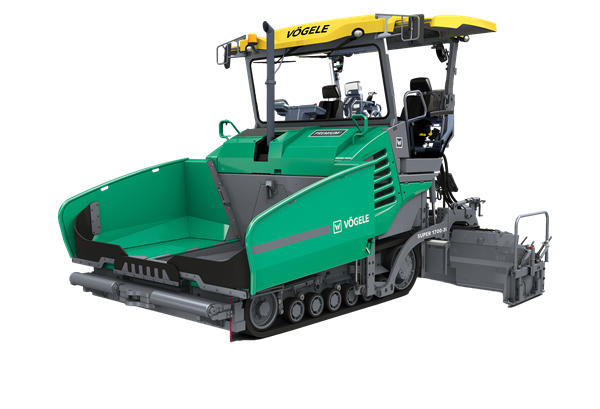

Super 1700-3i

Specifications

Super 1700-3i
Rated Power173 hp @ rpm
Operating Weight40345 lb
Working Width234 in

Features

Efficient Translation of Tractive Power
  • Continuous rubber tracks, 14 in. (355 mm) wide, with self-aligning front idlers provide for optimal steering under any conditions. Dual track tensioning cylinders provide perfect alignment.
  • Powerful track drives and engine output provides maximum torque with no loss of power.
  • Large footprint ensures maximum tractive effort and high flotation, allowing the paver to work at a constant speed even when operating on difficult terrain.
  • The most advanced steering control in the industry provides precise straight-line tracking and smooth, accurate turns.
Extra Large Material Hopper and Easy Material Feed
  • The large material hopper holds 14.3 tons (13 tonnes) and is dimensioned so that plenty of mix is stored at all times.
  • Sloped inner design of the hopper for an optimal flow of material to prevent segregation.
  • Easy feeding with mix thanks to only 24 in. (620 mm) dump height, wide hopper wings and sturdy rubber flashing fitted to the hopper apron.
  • Independently operated hopper wings.
  • Large oscillating push-rollers can be set to 2 different positions for convenient and shock-free docking of feed vehicles even in curves.
  • A truck hitch is available as an option.
Precision Material Delivery Prevents Segregation
  • Proportional control and continuous monitoring of conveyors and augers guarantee a constant head of material in front of the screed.
  • Inclined conveyors from the front to the rear of the machine provide ideal delivery of the material onto the augers.
  • Large, 16 in. (40 cm) diameter auger flights with precision pitch ensure excellent spreading of the material when paving in large widths or at lower engine rpm. VÖGELE’s unique flight design provides prolonged service life versus standard flight designs.
  • Narrow conveyor guard in the material hopper guarantees uniform material flow.
