Brandt Pipelayers

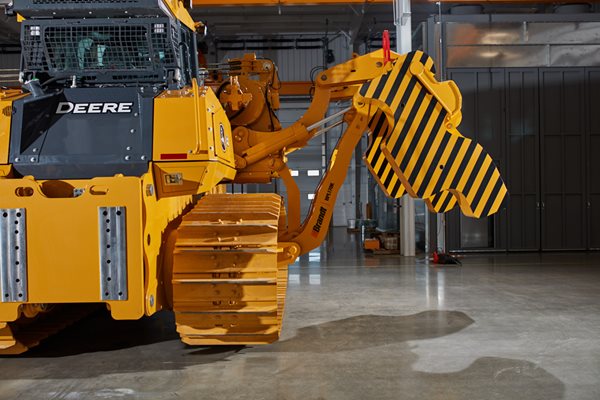

BPL170K

Superior Stability.

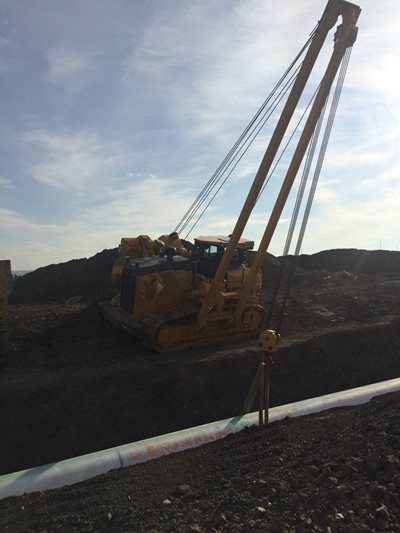

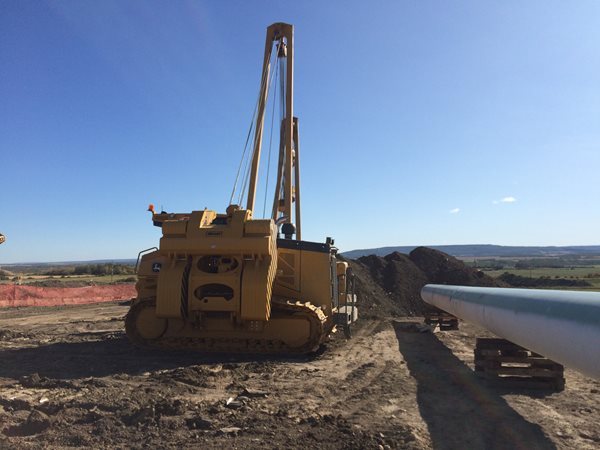

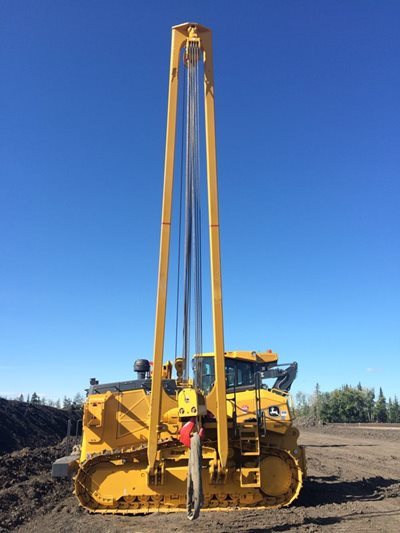

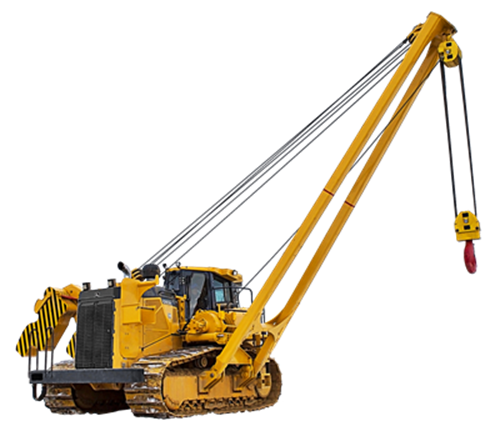

The BPL170K delivers maximum productivity and integrated technology to take on any terrain with ease. With 177,000 lbs of maximum lift capacity at four feet, the unit delivers the power and capacity to install large diameter pipe effortlessly. And, the symmetrical winch design optimizes visibility to the right-of-way while simultaneously delivering a lower center of gravity for unparalleled stability.

Completing the package is our best-in-class Brandt SmartLift™ system which offers dynamic stability feedback to ensure that the operator can constantly monitor lift capacity, slope, and pitch. In addition, load sensors are hardwired to the tractor for reliable feedback, and can be upgraded to premium camera and radar packages if desired.

Specifications

BPL170K
Weight120221 lb
Length246 in
Cabin Height138 in
Width250 in
Ground Clearance246 in

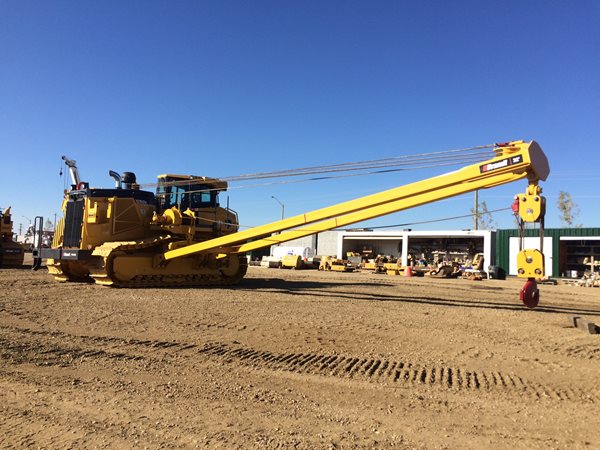

Boom Length228 in

Features

Stability
  • Up to 10,584 in2 total ground contact, based on your track shoe configuration, minimizes the right-of-way impact, reducing soil contamination and the time required to smooth over ruts.
  • Winch placement optimizes operator sightlines for easier positioning and ensures better tracking to reduce cable wear.

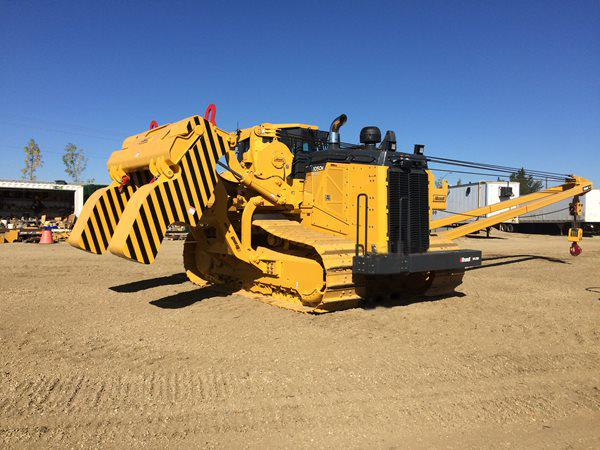

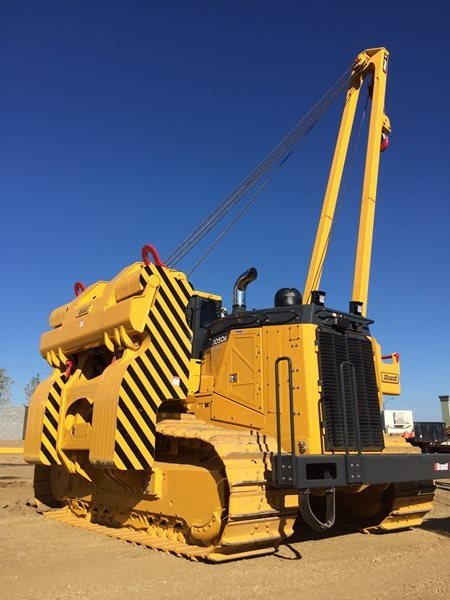

  • Symmetrical winch-mount locations deliver equal weight distribution and a lower center of gravity for increased stability and easier positioning for specialized pipe-specific attachments.

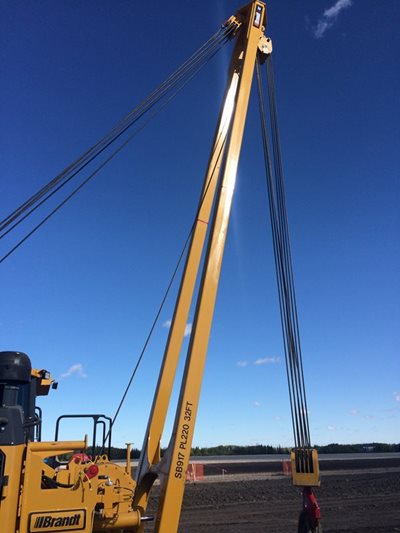

  • Boom length options of 24’, 28’, 32’, 36’ available.
  • Hook speed of up to 46 ft/min.
Safety

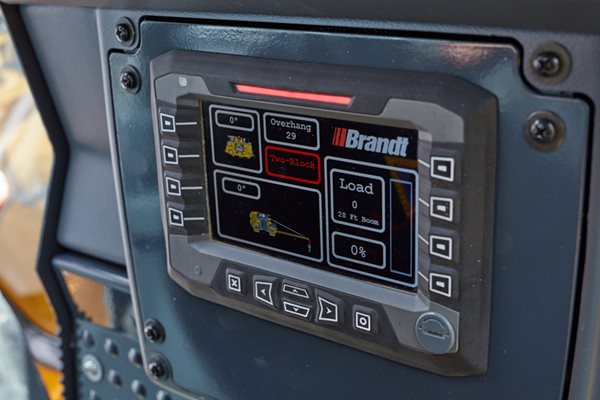

  • SmartLift™ Dynamic Stability Monitoring System delivers a continuous stream of real-time terrain and machine data, allowing the operator to monitor lift capacity in all conditions.
  • Camera and radar packages are available with two cameras and two radar units to keep the operator aware of their surroundings.
  • SmartLift™ automated warning system gives visible and audible machine tipping warnings, adjustable anti-two-block warnings, and low-rope warnings.
Convenience
  • Centralized grease point makes daily maintenance safe and easy while reducing service-related downtime.
  • Simple hook-block storage system and luff block storage system facilitates quick set-up and tear-down to maximize uptime.
Lower Operating Costs
  • Dual-path hydrostatic drive system delivers more drive-speed options.
  • ECO mode automatically adjusts engine power settings, based on load, optimizing fuel economy.
