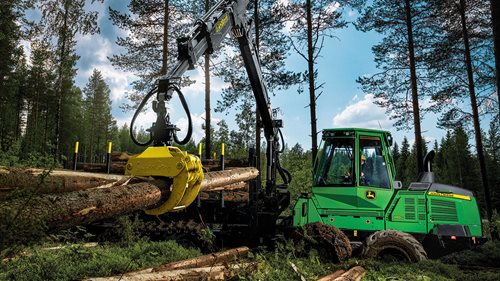

1110G

Features & Specs

  • Boom Reach 7.2 m (23.6 ft.) / 8.5 m (27.9 ft.) / 10 m (32.8 ft.)
  • Tractive Effort 160 kN (35,968 lbf.)
  • Load Rating 12 000 kg (26,455 lb.)
  • Engine Power 145 kW (194 hp) at 1,600 – 1,900 rpm
LOWER THE BOOM ON DOWNTIME
 When you work in remote areas, downtime is never an option. G-Series Forwarders are built forest-tough, with durable booms, axles, and electrical components.

These forward-thinking forwarders are loaded with improvements that boost performance and long-term durability, including increased power and torque. An enhanced Intelligent Boom Control (IBC) system option for more precise boom control. And, as always, a host of enhancements that help deliver more uptime and efficiency, while lowering daily operating costs.

Specifications

1110G
Rated Power194 hp @ 1900 rpm
Operating Weight37765 lb
Net Peak Torque638 lb ft @ 1400 rpm

Features

Short-wheelbase 1110G
The 1110G Forwarder is also available with a 40-cm shorter wheelbase, for better agility in thinnings, without compromising stability or load size.

More power and torque
PowerTechTM Plus diesels deliver more power and torque at low rpm, for excellent performance and fuel efficiency.

Improved boom control
Boom control is more precise. High- capacity controllers, simplified CAN buses, and a streamlined electrical system improve the efficiency of machine functions, minimize malfunctions, and accelerate troubleshooting.

Versatile load space
Load space can be easily configured to your needs, enabling better and quicker grapple access. Variable Load Space (VLS) option allows load-space width to be adjusted, for more flexible forwarding and sorting of short pulp and energy wood.

Adaptive Driveline Control
Select the driving mode (Eco, Normal, or Power) that best fits conditions during high loads, and Adaptive Driveline Control automatically adjusts engine loads to keep rpm steady. Select Normal mode for everyday operations or Power mode to get maximum tractive force in high-load situations. For lighter demands, Economy mode reduces engine speed and noise, while improving fuel efficiency.

Rotating and leveling cab
Rotating and smooth-leveling cab turns 290 deg., providing 360- deg. visibility of surroundings and boom movements, for safe, efficient log loading. Auto-leveling cab keeps operators balanced and comfortable in steep and uneven terrain.
