Go Big or Go Home.

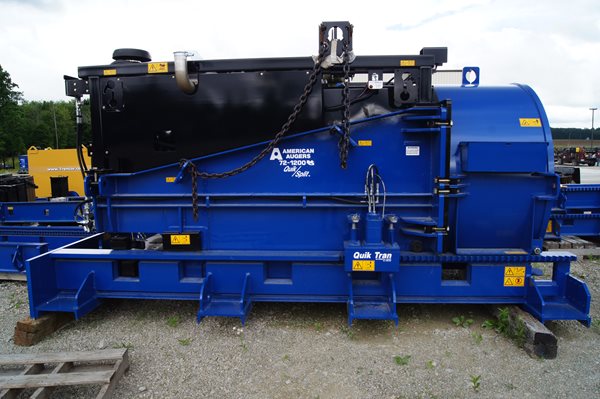

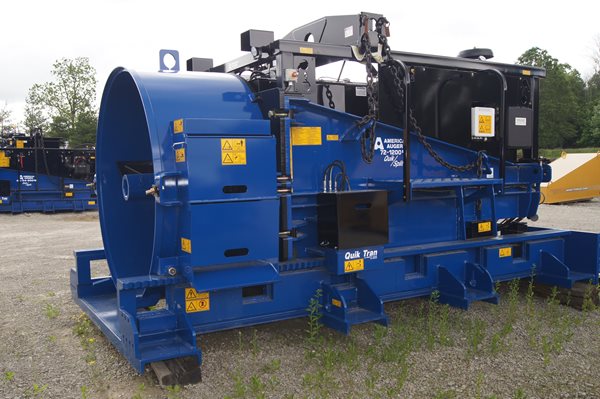

For jobs where bigger is better, biggest is best. The 72-1200 is American Auger’s largest and most powerful auger boring machine. This beast is purpose-built for true 72” boring, allowing you to take on high-value, large-diameter jobs. With a 1.2 million-pound maximum forward thrust and 200,000ft lbs of output torque, you get the power you need to do those big jobs quickly and effectively. And, when the bore is done, this machine’s Quik Split design separates into three easy-to-transport sections for the big-time productivity you need.
Specifications
| 72-1200 |
| Net Power | 248 hp |
| Length | 175 in |
| Width | 97 in |
| Height | 100 in |
Features
Productivity
- Quik Split design allows the machine to be disassembled into three sections for faster, easier lifts into and out of the pit.
- Quik Tran fast return system delivers up to 10,000lbs of push/pull at high speed, eliminating the need for dogging or winching.
Reliability
- Low centerline and wide stance maximize the stability of the machine.
- Machine locks safely onto the track, eliminating the need for hook rollers.
Unmatched Safety
- Gravity-activated spoil door deflects thrown debris from the spoil chamber.
- Emergency shutdown switches are easily accessible on the operator’s station and on the operator’s tethered switch.
