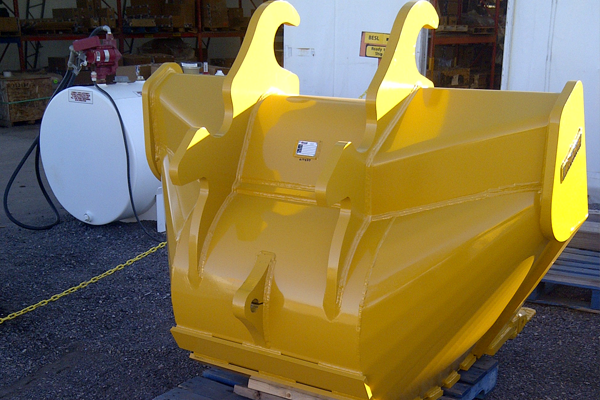

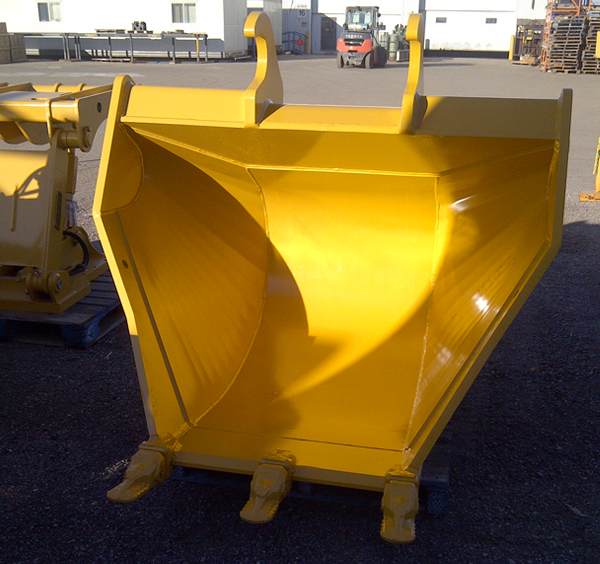

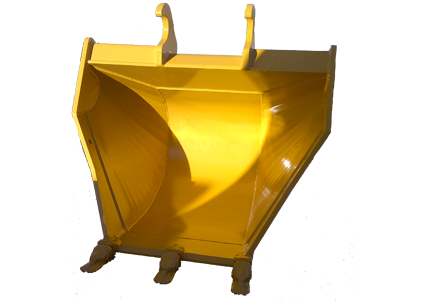

The Brandt Ditching Vee Bucket is a purpose built bucket specifically designed for pipe laying applications where contoured sides provide the required side slopes for proper safety of the personnel working in the trenches with ease. This also greatly increases your bottom line by eliminating excess costs associated with extra digging as well as the additional backfill that would be required to be hauled in to complete the job.

Specifications

36/66
Weight2127 lb
Length69 in
Width66 in
Height61 in
Capacity1.88 cu yd

Features

  • One piece conical side plates provide a nice, smooth ditch with minimal effort from the machine. This design provides safe working slope for confidence for all personnel on the job site.
  • Designed with a large bucket opening while maintaining optimal tip radius.  Optimal tip radius provides for superior bucket curling forces and stick power transfer to the bucket cutting edge.
  • Base edge and side leading edge are designed with high strength, abrasive resistant material for long life expectancy.
  • Machined front and rear lug boss surfaces along with a machined wedge surface ensure perfect alignment with the mating quick coupler.  The lugging is orientated so that superior engagement to the quick coupler is achieved at maximum bucket digging force.
  • Includes an engineered and load rated bucket lift eye for added versatility around the job site.
  • Lateral wear bars are designed with high strength, abrasive resistant material and are arranged to wrap completely up the backside of the bucket to protect the shell throughout the entire dig radius. This arrangement provides for superior wear reduction and increases the life of the bucket.
  • Available for various machine models, widths, GET and lugging options.

OPTIONS:
  • Teeth
  • Bolt on cutting edges (sloper or serrated)
  • Various widths at top or bottom
