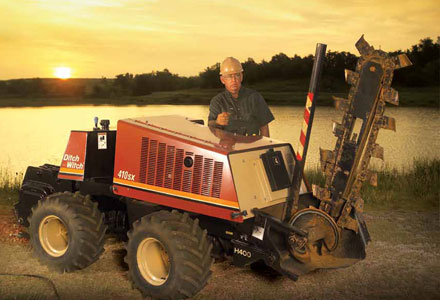

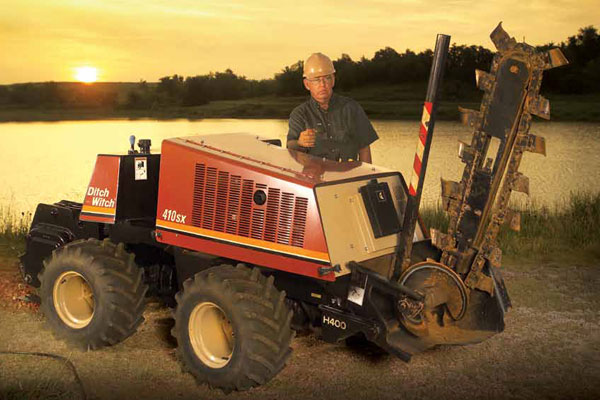

The Ditch Witch® 410SX is the most outstanding articulated-steer vibratory drop plow in its horsepower class.
The Ditch Witch 410sx is the most outstanding articulated-steer vibratory drop plow in its horsepower class. With dozens of innovative features, including a plow vibrator with automatic blade centering, the 410sx walk-behind vibratory plow and trenching machine quickly and efficiently installs communication lines, natural gas and water services, or a complete underground sprinkler system without digging a trench. Need a trench? The 410sx can do that, too.
Specifications
| 410SX |
| Operating Weight | 3370 lb |
| Digging Depth | 24 in |
| Net Power | 49.6 hp |
Features
- Upgraded in 2009 with a Tier-4i Deutz diesel engine with 45 net hp (33.6 kW), the 410sx vibratory plow has the power you need for the most demanding conditions.
- Articulated-frame steering enables the 410sx to maneuver around trees and other obstacles.
- Oscillating rear axle allows four-wheel drive to provide excellent traction.
- Easily accessible, easy-to-understand, color-coded controls; on lever controls ground speed, direction and steering.
- When attachment or ground drive is engaged, operator-presence system stops the engine if operator releases the control.
- Centerline digging attachment features an auger for fast spoils removal.
- Optional front-mounted trencher attachment works as hard as many dedicated trenchers.
- Vibratory plow trolley automatically centers itself with the plow blade is raised from the ground while plowing or trenching; a manual lock secures the trolley during transport.
- Powerful, liquid-cooled diesel engine is enclosed for quiet operation, and vibration-isolated to reduce operator fatigue.
- Direct hydrostatic ground, plow and trencher drives require no chain adjustments.
- Pin joint bushings require no lubrication.
