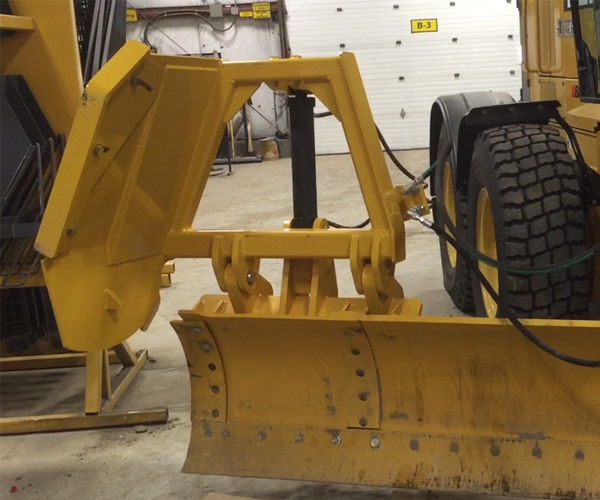

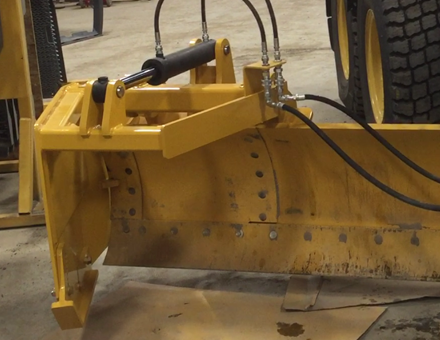

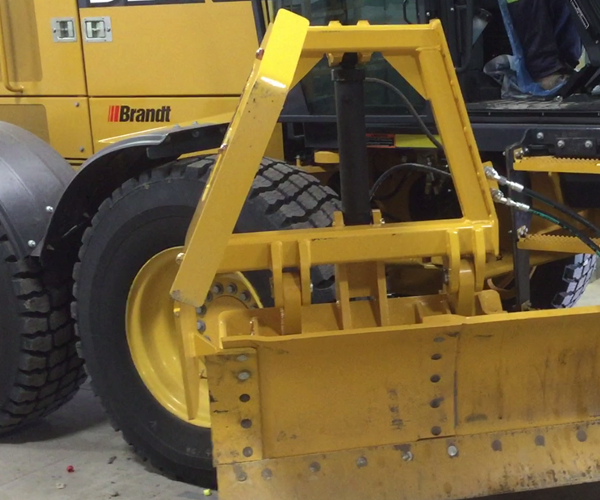

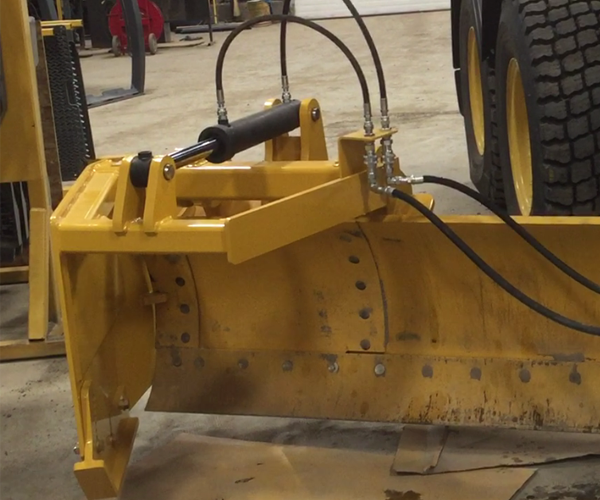

The Brandt Snow Gate is built extremely durable to withstand all the harsh winter conditions we face each year. The heavy duty cylinder can be hydraulically controlled from the cab to temporarily interrupt and carry large volumes of snow across driveways, intersections and any other spot the operator doesn’t want to leave a ridge or windrow.
Specifications
| RH End Gate |
| Weight | 628 lbs |
| Length | 42 in |
| Width | 38 in |
| Height | 40 in |
Features
- Adjustable skid shoes on the side plates are simple to adjust and can slide down as the main moldboard wears so it will always match the moldboard and limit snow loss when in use.

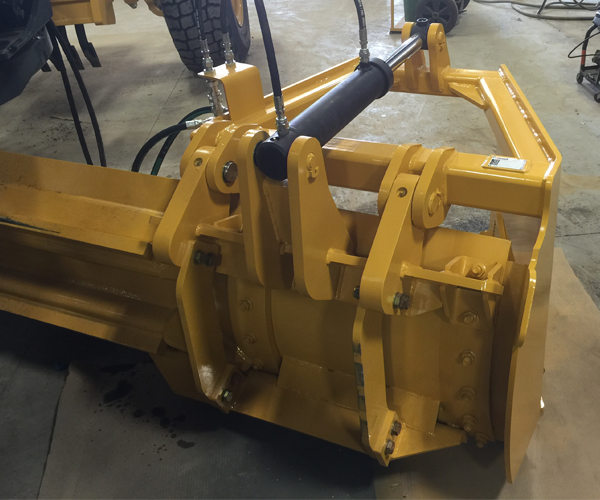

- Heavy duty cylinder can extend and retract quickly so the operator can maintain plowing speed and maintain clean driveways and intersections. This can speed up snow cleaning operations tremendously as no other equipment is required to follow and clean up.
- Quick couplings are installed for the hydraulic hose fittings which makes for an extremely quick and user friendly install or removal.
- Multiple ribs and support mounts are welded to rear of moldboard for mounting but the actual gate can be easily unpinned after the winter months and the mounts will remain on but out of the way for the summer months.
- Extended side end plate accommodates high volume loads and excellent carrying ability for clearing even the widest intersections for a high level of versatility.
- Snow Gate is specifically design around Deere moldboards which ensures an excellent and tight fit with no compromises when it comes to fitment. This ensures minimum gaps between moldboard and end gate as well as an optimum fold up position.
- Replaceable high strength, abrasive resistant one piece bolt on skid shoe to prevent excess wear to the end gate and improved life expectancy.
- Available for various machine models and moldboard configurations.
