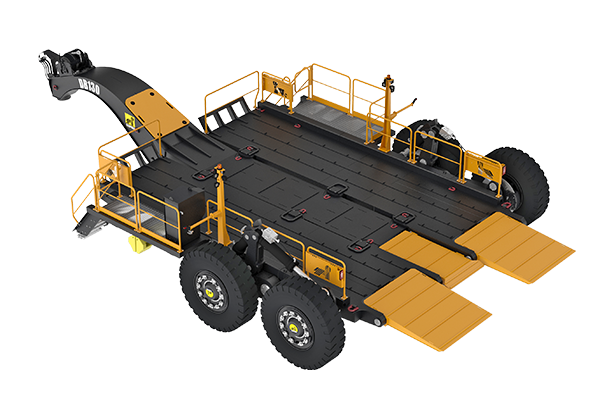

The agile, powerful, and convenient DB130 transport system from Sleipner will maximize your mine productivity and save you loads on undercarriage maintenance costs. Purpose-built for hauling drill and dozer fleets, it can carry up to 130 tonnes at 15 km/h safely, so your equipment can get to and from the job site without wasting precious time. Where it may take several hours to get your machine to the worksite on tracks, the transport system can get it there in under an hour.
With a tilting feature on DB130’s load bed, you can load and unload in under two minutes safely with single-person operation. Its high clearance and reliable braking system lets you haul drills and dozers over rough terrain or down slopes with ease, while its 14m turning radius lets you take tight corners without issues. By keeping your drill and dozer fleets off the ground when they’re in transit, you can double, or even triple, their undercarriage life and cut maintenance costs in half.
Specifications
| DB130 |
| Description | Weight Class - 63 tonnes
Max Allowed Payload - 130 tonnes
Towing Vehicle - 45 tonnes plus ADT |
Features
KEY FEATURES
Ideal payload capacity.
- With a payload capacity of 130 tonnes, you can haul king-size drills and dozers with ease, no longer limiting mine planning to a static drill or dozer fleet.
Quick loading and transport speed.
- One person can carry out the rear-entry loading operation in under two minutes and transport the drill or dozer at speeds up to 15 km/hr. Unloaded, the DB130 can be transported at speeds of 30 km/h. These features help you get to and from the jobsite quicker so you can move more earth with less operator fatigue.
Easier and safer to operate.
- Operators can control all functions of the control system through an on-board display unit, while a reversing camera system ensures maneuvering safety.
Sturdy construction.
- The flat, unencumbered load bed is wider than the loaded equipment tracks and contains certified load-binding points to ensure the drill or dozer is secure during transport.
- The wheel gauge offers unmatched safety, eliminating the risk of overturning even if the wheels drop off the road.
Safe and reliable braking.
- The patented drag brake system is fail-safe without any fade effect even on long descents, letting you stop safely to avoid accidents. An automatic parking brake keeps the unit in place when it is not in use.
Optimal ground clearance.
- Large wheels on the DB130 provide optimal ground clearance, keeping the drill or dozer undercarriage clear of debris and rough terrain for longer wear life.
Wheels vs. tracks.
- Wheeled transport allows drill and dozer fleets to be moved to and from the jobsite much faster than on tracks.
More effective planning.
- Move your drill or dozer between locations in minutes for safer, easier, and more effective planning for blasting sequences and other mining operations, even in the middle of a shift.
- Areas of the mine with no need for fulltime dozer service can be operated with shared resources.
Tight turning radius.
- The agile design allows operators to turn a Sleipner DB130 around on a two-way mine road with a turning radius of 11 – 14.5 meters, depending on the articulated dump truck used hauling the DB130.
