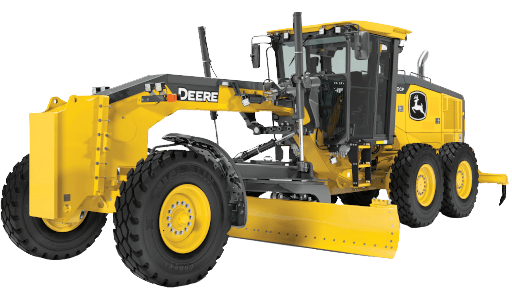

620G/GP

Compact Machine, Full-sized Results.

The 620G delivers a powerful punch in a compact package. It delivers exceptional control and grading precision without a lot of extra effort. With increased engine horsepower, torque and a powerful blade pull, it can easily pull through tough spots or tackle steep hills, making it the perfect solution for many jobsites. Integrated and calibrated straight from the factory, the 620G promises to be ready for work upon arrival.

Specifications

620G/GP
Rated Power215 hp @ 2100 rpm
Operating Weight50000 lb
Net Peak Torque750 lb ft
Blade Pull31066 lbs

Features

Productivity
In-cylinder position sensing allows the 620G to stay on grade no matter what blade pitch, articulation angle, or circle offset you’re running. Increased engine horsepower, torque, and blade pull produce generous power and lugging ability, to deliver more power to the ground, easily pull through tough spots, or tackle steep hills. No extra levers are required for grade control because knob-integrated push buttons provide convenient, fingertip activation.

Efficiency
Deere’s dual-joystick controls provide intuitive control with minimal hand motion during direction changes and gearshifts. By eliminating the twisting wrist motion or uncomfortable combinations common to other joystick systems, dual-joystick controls help reduce operator fatigue. Auto shutdown turns off the engine after an operator-determined period of idling, saving fuel while reducing wear on engine, transmission, and hydraulic components.

Safety
Integration into the SmartGrade cabin and structures helps shield key grade-control components such as wire harnesses and sensors from damage and theft. Visibility is virtually unobstructed, with an all-around clear view to the heel and toe, and behind the moldboard. Even the area beneath the front axle is clearly within sight, for greater awareness of oncoming obstacles.

Optional Automation Suite:
  • Auto-Articulation combines front and rear steering
  • Use Blade Flip to automatically mirror the circle to a preset angle
  • Machine Presets allow operators to activate multiple machine functions, features, and positions with the press of a single button
