RTB 130

RTB130

FEATURES & SPECS
Unrivaled Suspension for safety and stability
Ultimate Track Maintenance Platform

EXCAVATOR / WHEEL LOADER: IN ONE POWERHOUSE MACHINE

When it comes to getting results, efficiency is the key and reliable equipment is a must. That's why the new Brandt RTB 130, the industry's most powerful, dependable and safe hi-rail backhoe, is built to dig in and work steadily until the job is done.

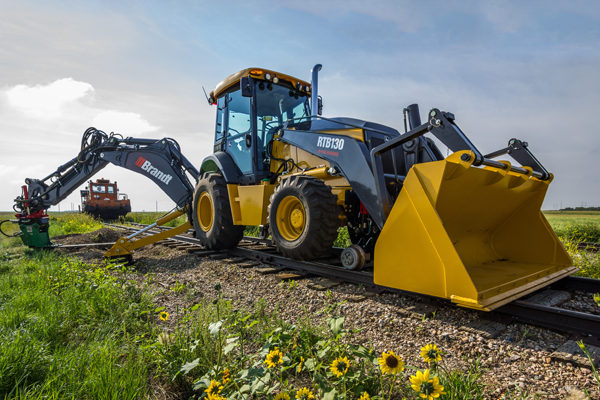

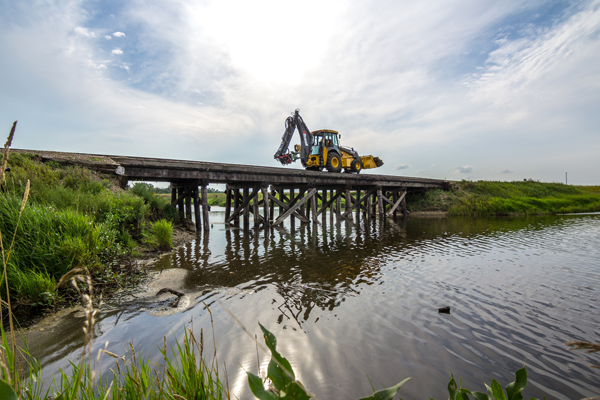

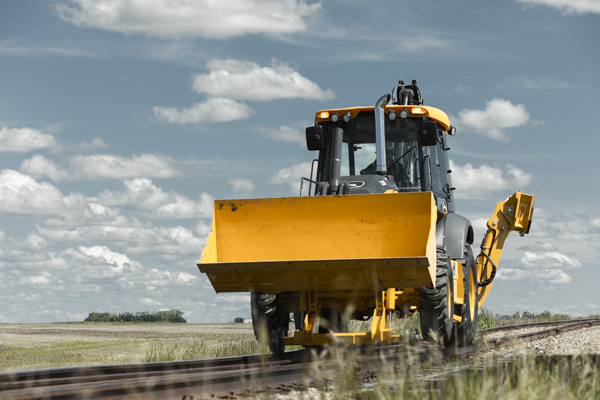

A multimodal excavator and wheel loader in one versatile machine, the RTB 130 is mounted on a John Deere 710 base chassis and powered by a mighty 130 hp engine and high capacity hydraulics. This ensures maximum power flows to the attachments whether doing tie, rail and ballast maintenance, undercutting, tamping or brush cutting. Ready for road or rail travel up to 21 mph, this robust vehicle has an impressive reach of 26 feet and boasts a maximum lift of over 7,500 lbs on the backhoe bucket and over 13,000 lbs on the loader. It may be agile, but the RTB 130 is no featherweight.

Specifications

RTB 130
Rated Power130 hp @ rpm
Weight28000 lb
Length27 ft
Width10 ft
Break Out Force15540 lb
Forward Speed21.8 mph mph
Reverse Speed16.5 mph mph
Conversion Speed21.8 mph min
Rail Boom Lift2,179 lbs @ 24 ft; 3,506 lbs @ 16 ft; 3,814 lbs @ 12 ft

Features

UNRIVALED SUSPENSION FOR SAFETY AND STABILITY

Setting the RTB 130 apart is its unique suspension on both front and rear hi-rail gear, providing greater stability and improved operator safety while allowing it to better handle variations in track geometry. The AREMA compliant hi-rail gear features 10-inch wheels with 4 inch double roller bearings for a reliable, long life.

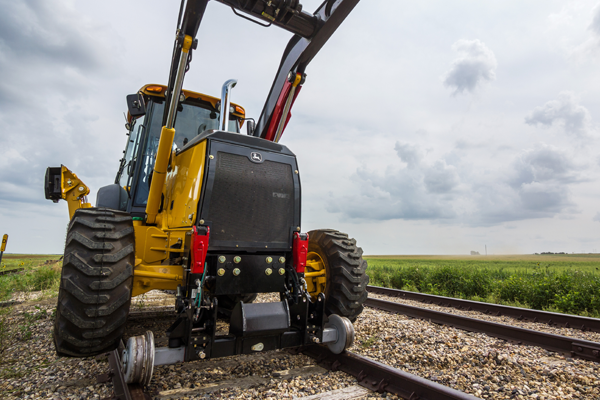

Front Hi-Rail Gear

  • Up front, the rail gear has two adjustable height settings - higher clearance for travel, accessing on/off rail and maneuvering around the worksite, as well as lower clearance for work mode. Safety pins lock the gear in the up or down position. The pivoting front axle allows for cant in the rail for added safety.

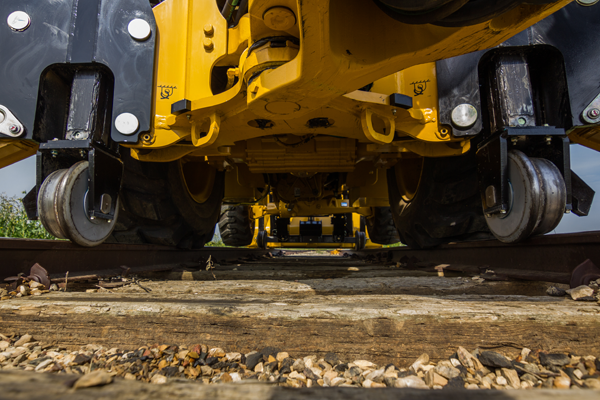

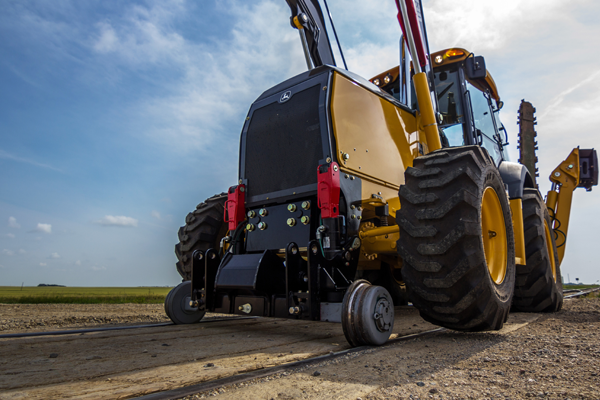

Rear Hi-Rail Gear

  • Whether in rail or road travel mode, the rear hi-rail gear has a ground clearance of 12 inches. The 6,000-pound rated rear suspension applies a constant down pressure, ensuring safe and reliable contact with the rail head even when traveling over unlevelled crossings or rail frogs. Safety pins lock the gear in the up or down position.


THE ULTIMATE TRACK MAINTENANCE PLATFORM

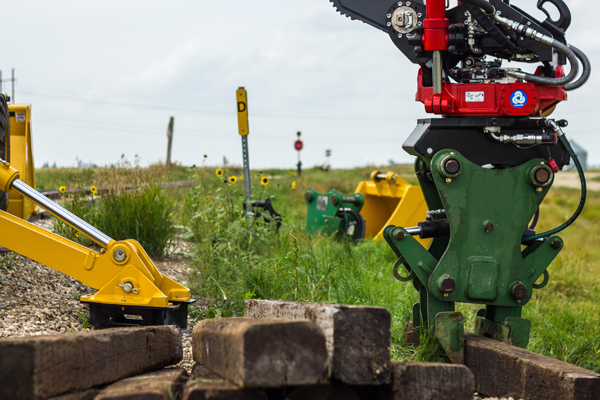

The RTB 130 is truly the ultimate platform, thanks to a multipurpose design that fits the attachments you need to get the job done on time, every time. The quick-attach coupler makes interchanging accessories on site simple and allows for a continuous 360-degree swing of any attachment you put to work.

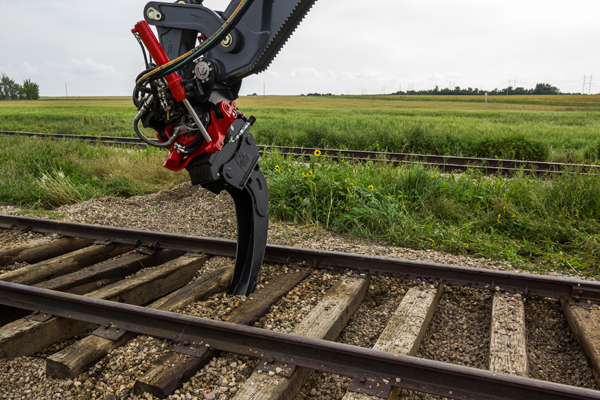

Backhoe Attachments

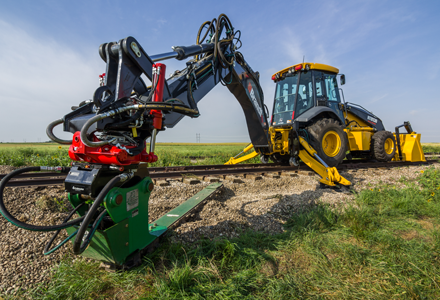

Another reason why the Brandt RTB Backhoe is unparalleled is because of how effectively it utilizes its attachments. High-flow hydraulic capacity efficiently powers the undercutters, tampers and brush cutters to maximize muscle power and productivity. The RTB's 26-foot reach and responsive controls help move the buckets, grapples and tie handlers with ease, making simple work of most ditching and tie-handling projects.

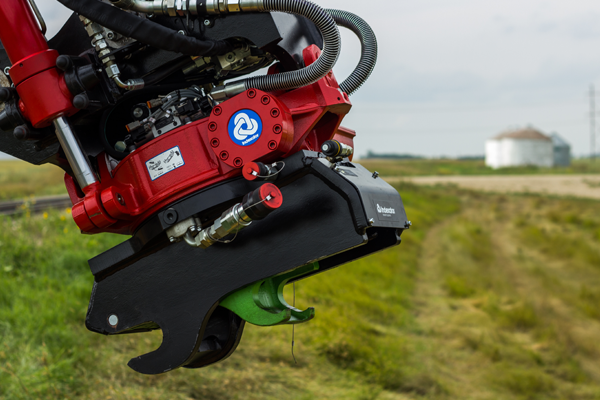

  • Rototilt

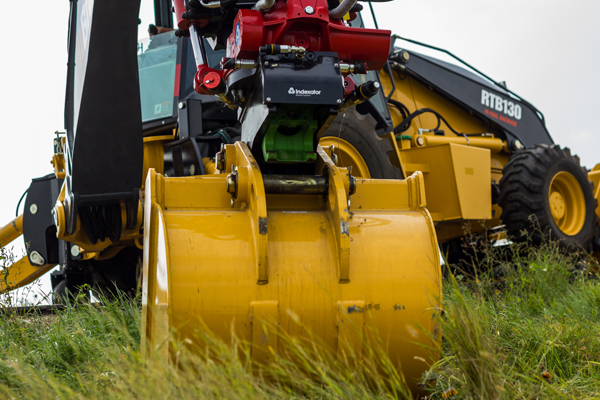

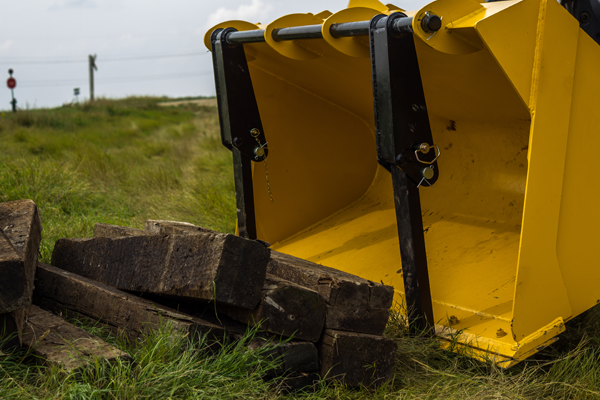

  • Buckets
  • Forks
  • Undercutters

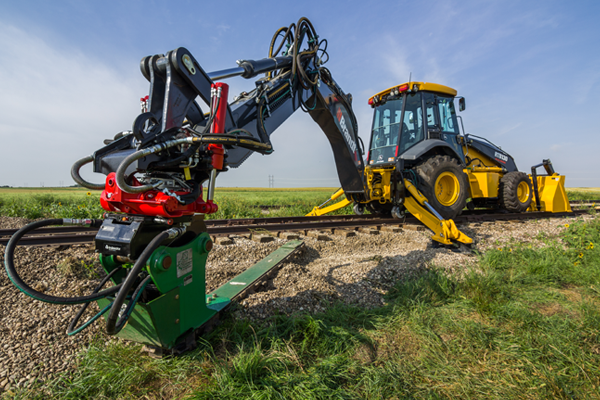

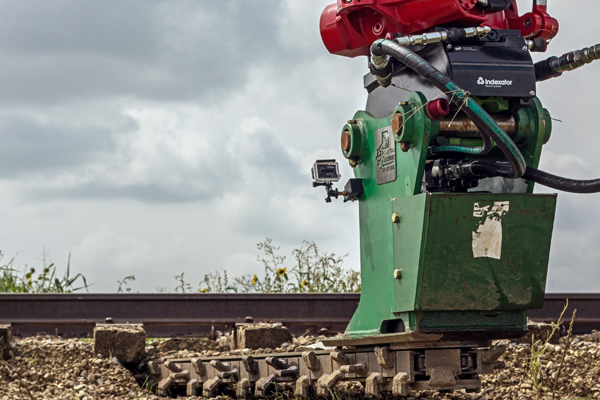

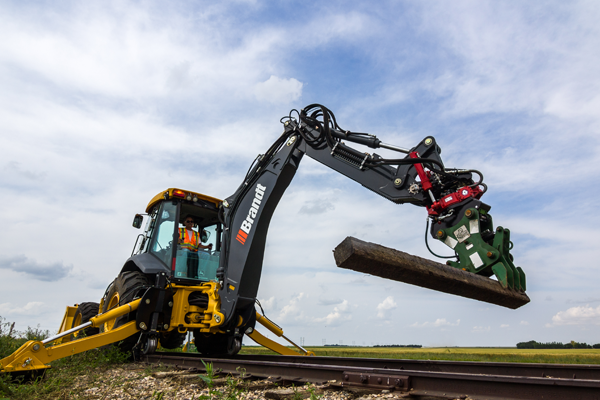

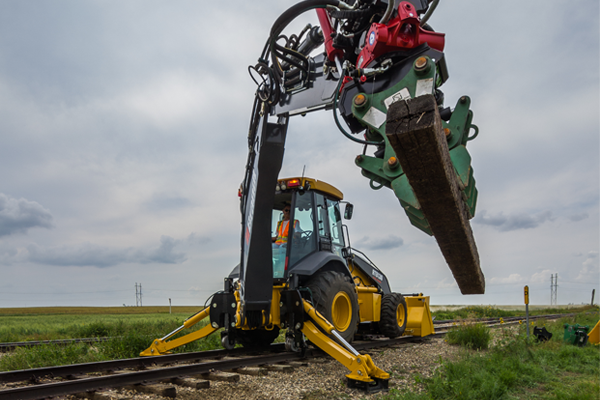

  • Tie Handlers
  • Tampers
  • Grapple Magnets
