Brandt | 72" Rake 72" Blade

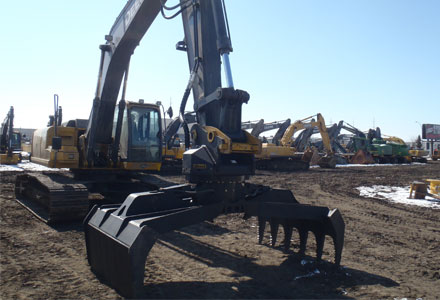

The Brandt Excavator Mat Grapple is an extremely versatile tool used to load, unload and precisely place rig mats commonly used to get access and work in very remote areas. The grapple is designed with multiple features to ensure this job can be performed as efficiently as possible to keep you working and extend the important drilling season.

Specifications

72" Rake 72" Blade
Weight	5808 lb
Length	128 in
Width	72 in
Height	79 in

Features

High Flow in Head Valve will allow the maximum auxiliary flow from the excavator meaning operators can perform multiple functions without a loss in speed.
Higher allowable working pressure makes the most of the machine's available hydraulic pressure.
An industry proven drive system offers a high torque 60.5 VIS motor to easily rotate when fully loaded and also maintain ability to have fine movements when needed.
Full 360 degrees of continuous rotation for complete operator control.
Full proportional kit included to give operator full control to lift, tilt, spin and position the access mats easily all from the comfort of the cab. The rotator and clamp can respond with variable speed that you control, which can aid in fine movements for precise positioning.
Joystick designed with operators in mind to ensure all the controls are easily at their fingertips to perform all the required tasks efficiently and accurately as possible.
Drive system utilizes sealed, flushed and hardened spline adapters along with massive pinion and rotation bearing gears.

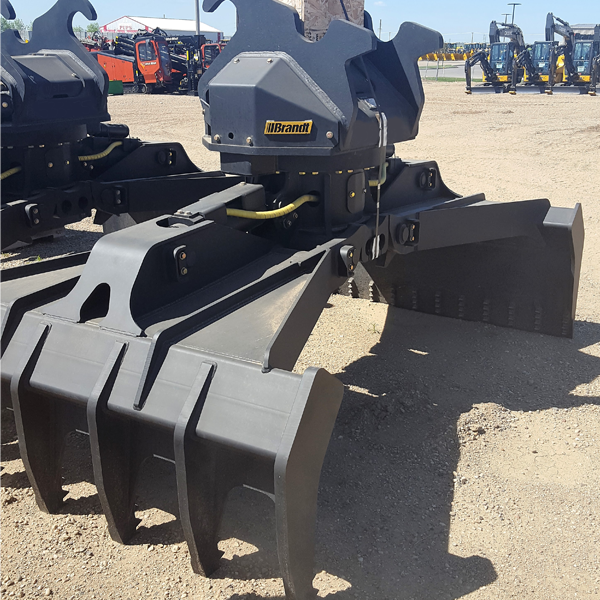

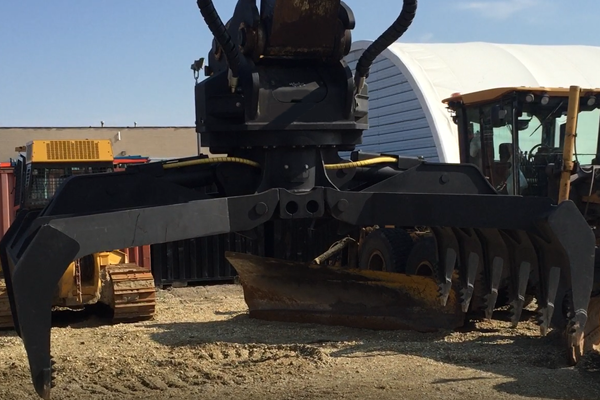

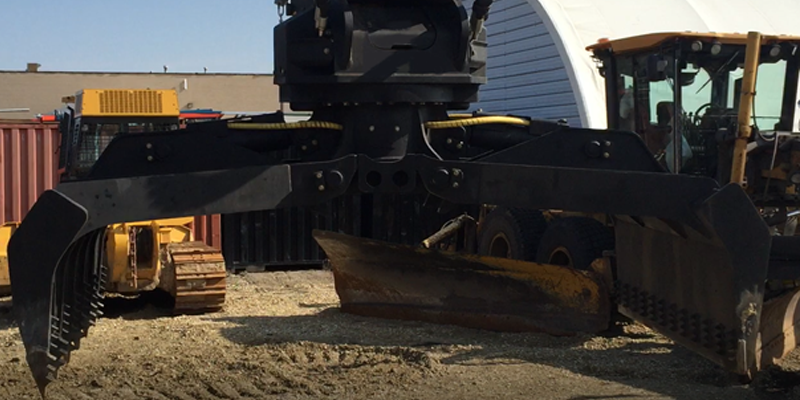

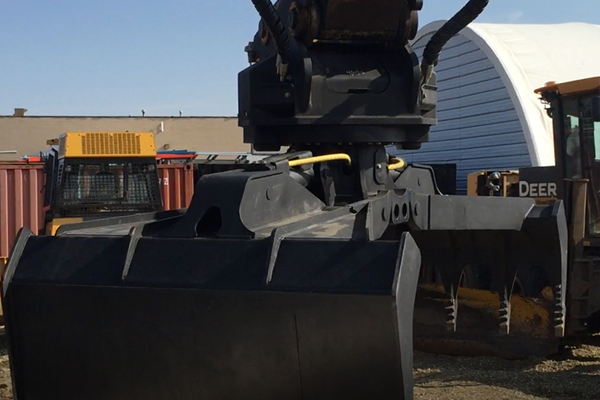

Innovative jaw design features two different types of jaws to perform various tasks. Blade side can be used to clean and scrape tops of mats to maintain smooth roads or ensure loaded clean to move to the next site. The jaw side features serrated replaceable tips to pry up stuck mats with ease to keep operations moving.

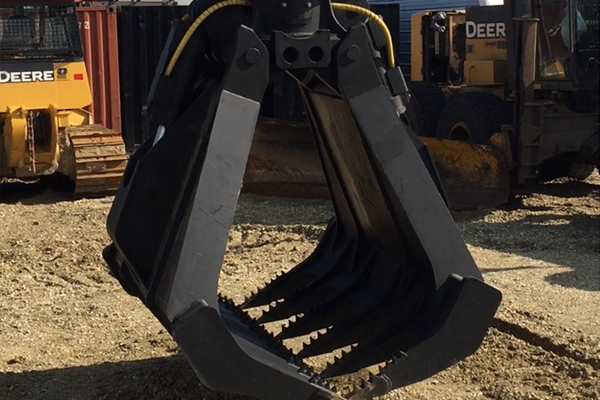

Jaws are built extremely heavy duty and feature a very large envelope to pick and hold multiple mats to securely hold them with serrated teeth on both sides of the jaws, so operators can tip vertically to drain and clean vertically with ease.
Hardened pins and bushings and a robust pin retention system for durability and less down time.
High pressure hydraulic cylinders with armored hoses for excess clamping forces in all situations. The cylinders also offer cushioned stops for clean, smooth operation.
Heavy Duty cylinder and motor guards are designed to provide full protection of crucial components to eliminate unwanted downtime.
Optimal hose routing results in minimal hose movement and rubbing to increase overall life of the crucial life lines of the grapple.
Hydraulic system includes cross over relief protection.
External centralized grease bank for internal grease points and multiple covered access ports on pivot frame for easier serviceability.
Split top access cover allows for easier removal and installation.
