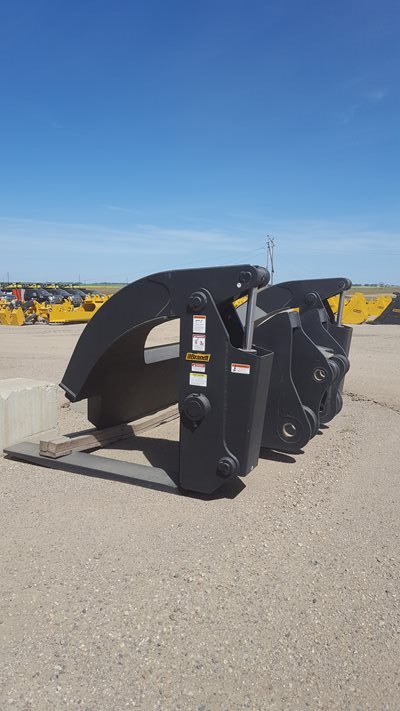

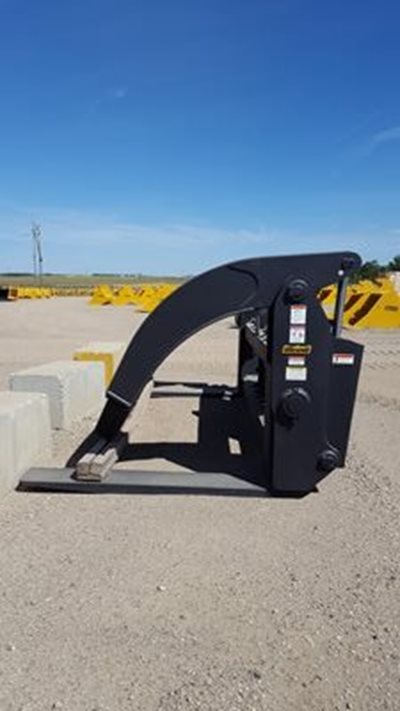

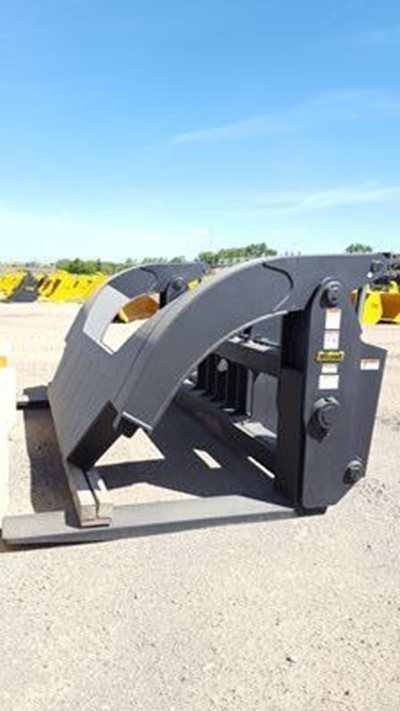

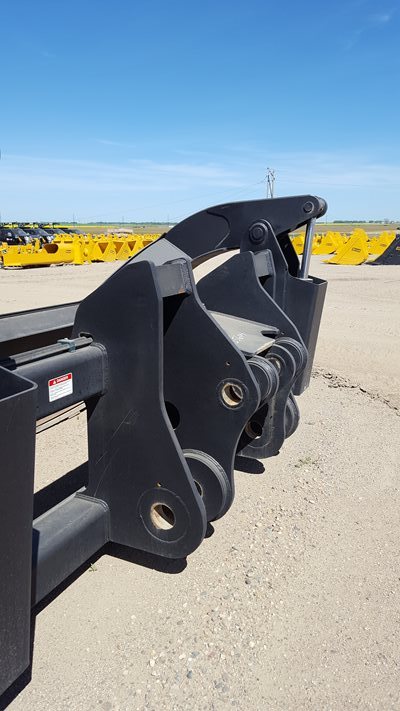

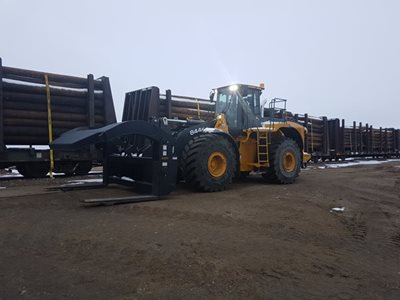

The Brandt “Bale Style” Single Overarm Grapple is designed to handle large diameter pipes and poles securely and safely as it is transported around the yard.
Specifications
| Bale Style Single Arm |
| Weight | 10494 lb |
| Length | 107 in |
| Width | 150 in |
| Height | 72 in |
Features
- Overarm utilizes a robust box section construction to combat torsional stresses typically found with handling long offset pipe loads.
- A proven overarm profile to handle multiple lengths of smaller pipe or single lengths of larger pipe which increases versatility as normal sites will handle various diameters of pipes.
- Smooth single radius curl on overarm to minimize pipe damage as it is held firmly against the forks.
- The wide stance of grapple body provides a stable base for handling long lengths of pipe with ease as it maneuvers over rough terrain.
- Visibility is maintained for operators to have a clear line of site as they approach, pick and carry the pipe throughout the yard.
- Massive fixed fork tines are mounted to outside of carriage to handle all your pipe handling needs.
- The nose of the grapple is designed to bypass under the fork tine level to not only grip tighter on smaller pipe but provide the operator additional control when handling and sorting individual pipes on the racking.

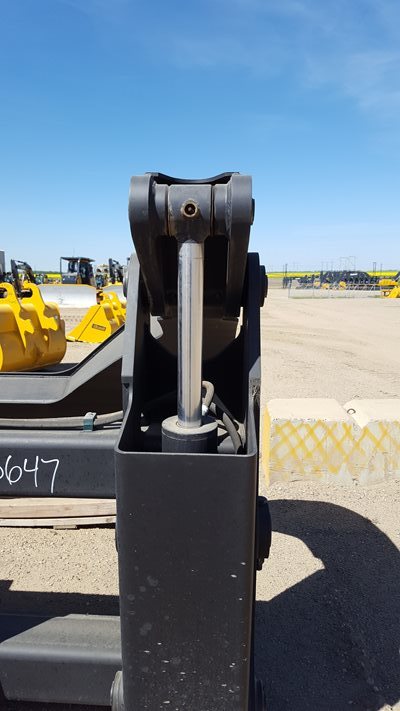

- Hydraulic components are sheltered and a very clean and protected hose routing reduces broken fittings or damaged hoses meaning less downtime.
- A pressure reducing valve reduces the clamping force of the overarm while maintaining 1500 psi overarm relief pressure. This ensures the overarm will not open under normal working conditions but still provides adequate clamping force.
- Available in various sizes and lugging configurations
