S500-Flip

Maximum Payload. Minimum Wear.

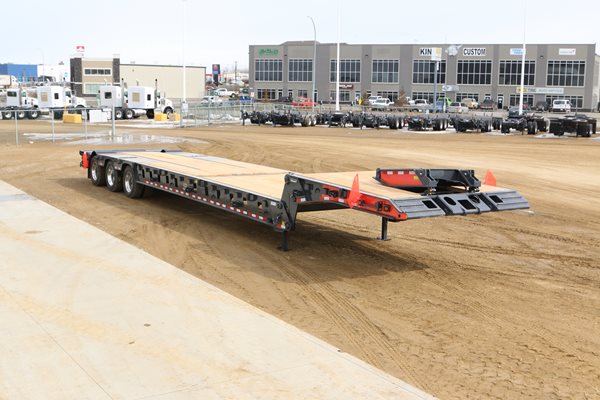

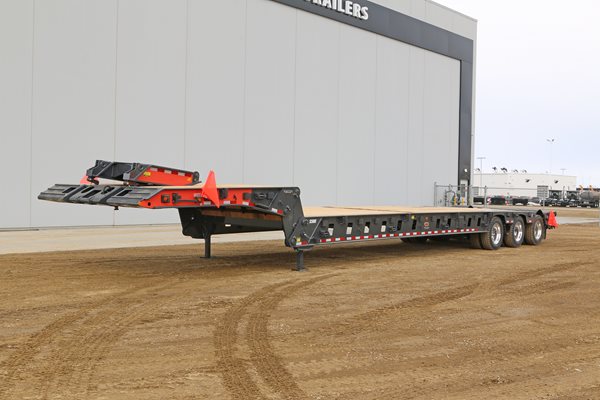

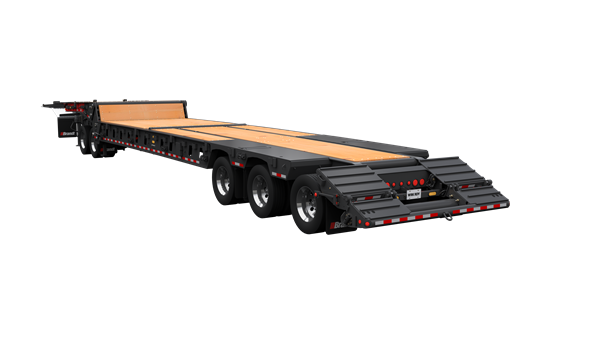

The all-new S500 flip-over beavertail scissorneck trailer from Brandt delivers the superior reliability required to handle your heaviest loads and keep coming back for more. The extra-heavy-duty ramp locking mechanism is positioned between main beams, ensuring maximum reliability. And, the tough powder-coat finish gives the ramp superior wear-protection, allowing you to confidently load your equipment — even with ice cleats. Once your equipment is loaded, you can count on the winch guide flip-up mechanism to quickly and easily raise the ramp so you can hit the road sooner.

Specifications

S500-Flip
Tare29,200 lb
Payload50 tons
Dimensions (LxWxH)10' x 42'
Axle Lines9
ApplicationOilfield

Features

Easier to Own.
This trailer is backed by the best support in the business to make ownership stress-free:
  • Flexible purchasing options include rentals, rental purchasing, leasing, and conventional financing.
  • Brandt’s advanced paint protection  looks better, lasts longer, and inhibits corrosion for longer trailer life  and increased resale value.
  • Reliable design and long-lasting components reduce total cost of ownership.
Easier to Operate.
  • Knife-edge gooseneck profile makes it easy to load low ground-clearance vehicles over the front onto the trailer in the high boy configuration.
  • Kicker rolls are placed between the first and second axles to reduce friction, making loading and unloading short payloads easier and more efficient.
  • Winch and J-hook positioning alternates from side to side, making securing loads easier and more efficient from either side of the trailer.
Safer.
  • Premium fir decking provides better traction for the operator in wet and frozen conditions, maximizing safety.
  • Work lights are placed in important loading and unloading areas, including in the control box, to make operation easier and safer in adverse conditions.
  • Remotely-mounted air-tank drain valves make maintenance safer and faster.
