24"

BL-Dig-Bucket

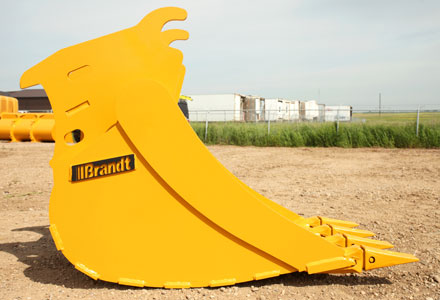

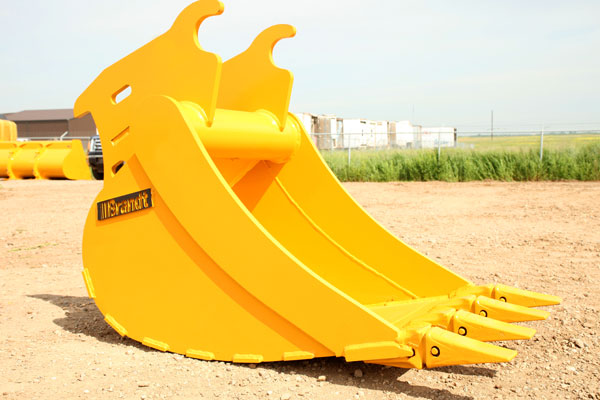

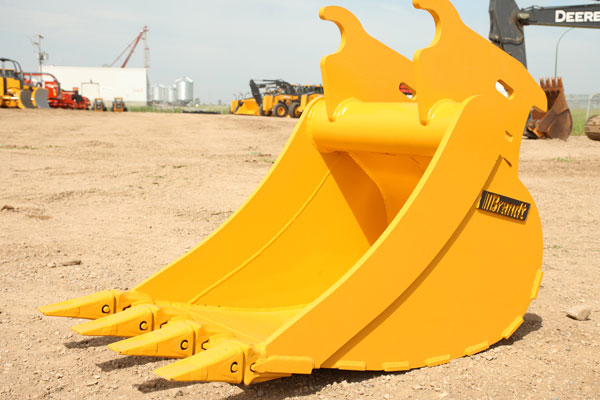

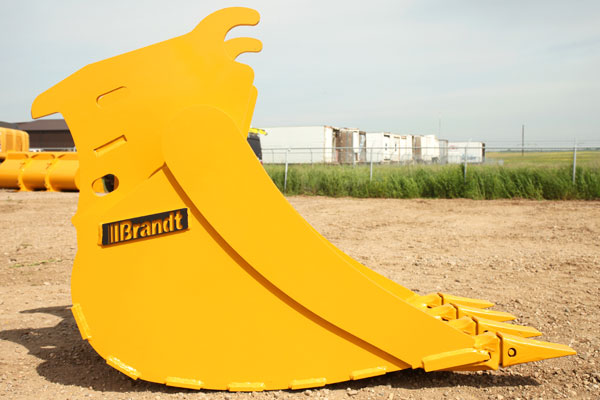

Brandt Digging Buckets are built for heavy digging conditions. They are designed with bucket breakout forces and abrasion resistance in mind.

Specifications

24"
Weight521 lb
Length43 in
Width24 in
Height34 in
Capacity0.28 cu yd

Features

  • A full length one piece side bar allows for a stronger bucket and helps reduce wear. This design one piece side bar design provides bucket support from the base edge all the way to the top of the bucket for increased bucket strength.
  • A compound curved shell offers the best clearance at the heel of the bucket during curl which reduces heel wear. This compound radius design promotes superior bucket loading and unloading characteristics.
  • Full length lateral wear bars are designed with high strength, abrasive resistant material to further extend the life of the bucket.
  • Machined front and rear lug bosses ensure perfect alignment with the mating quick coupler.
  • Wear sleeves are included with the standard lugging to allow for fit up to the Deere Universal Quick Coupler or direct pin on to stick applications.
  • Dig buckets include an engineered and load rated bucket lift eye

Specifications

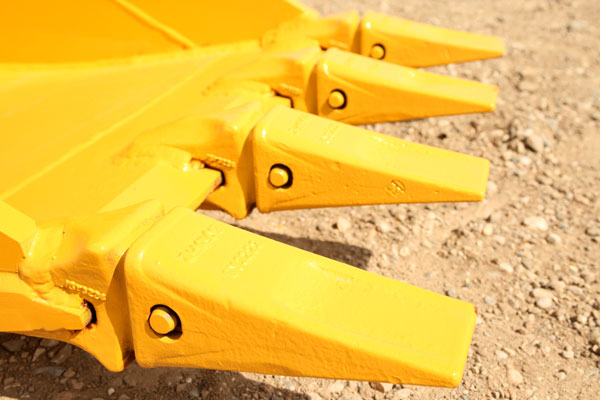

  • Heavy Duty long life teeth and adapters
  • High strength, abrasive resistant base edge
  • Engineered bucket lift eye
  • Wear Sleeves are included with standard lugging
  • High strength, abrasive resistant side bars and horizontal wear bars
