MV800

MV800

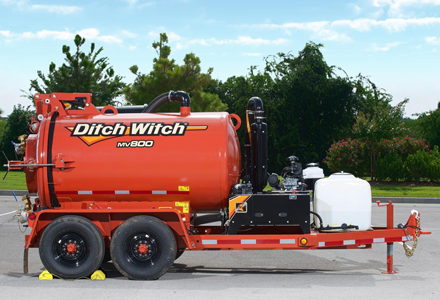

The MV800 is a ruggedly built, long-lasting and economical mud vac built specifically for a wide range of HDD cleanup tasks.

The punishing conditions of HDD jobsites demand a mud vac you can count on job after job - a perfect description for the new, ruggedly built Ditch Witch® MV800. Featuring the heavy-duty, field-proven components that keep all Ditch Witch vacs performing strong year after year, the competitively priced and easy-to-operate MV800 offers a dependable Briggs & Stratton® engine, reusable filter and many other cost-efficient, customer-requested features that together translate into the benefit you need most: greater uptime.

Specifications

MV800
Net Power31 hp
Tank Capacity100 - 100 gal

Features

POWER

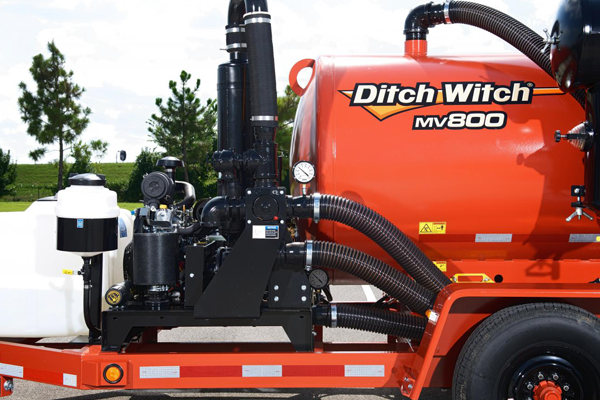

  • Commercial-grade, 31-hp (23.1-kW) Briggs & Stratton Vanguard® gas engine features an electric start and high-capacity remote air intake filter.

PRODUCTIVITY

  • 800-gallon (3028-L) spoils tank designed for HDD drilling fluid cleanup jobs.
  • Optional reverse flow simplifies spoils removal and improves productivity.
  • Optional 100-gallon (379-L) high-pressure water tank with 3,000-psi (207-bar) pressure for soft excavation tasks such as potholing utilities.
  • Filtration system includes an integrated carryover chamber that eliminates contaminants before they reach the blower, increasing uptime.

RUGGED DESIGN

  • Long-lasting, low-cost vacuum excavator that is ideal for HDD cleanup tasks.
  • Same field-tested, heavy-duty components as other Ditch Witch vacuum excavators, for reliable performance in rugged jobsite conditions.

EASE OF USE

  • DC power pack with thermal switch provides protection in overload conditions.
  • Standard curbside controls promote jobsite safety and allow one-person control of all unit functions.
  • Optional hydraulic opening door is designed for easy spoils removal and maintenance.

SAFE OPERATION

  • 14,000-lb (6350-kg) GVWR trailer is FMVSS-compliant, complete with high-visibility marking and impact guard.
  • Standard safety features include strobe light, belt guards and mechanical locks on all lift cylinders.
