60" Carriage 48" Forks

EX-Pipe-Grapple

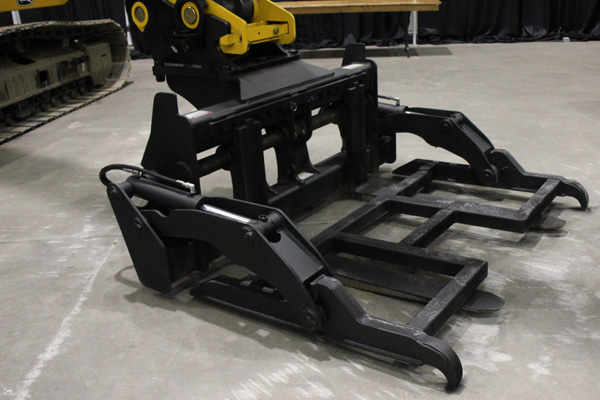

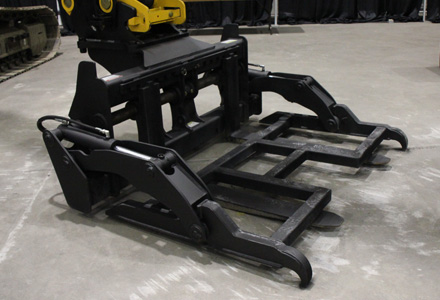

Brandt Excavator Pipe Grapples are designed with exceptional operator convenience and durable components to provide a unique pipe handling tool that can withstand working in the most unforgiving conditions.

Specifications

60" Carriage 48" Forks
Weight2485 lb
Length89 in
Width80 in
Height50 in
Fork Size48 in
Brandt.Products.ForkThickness2 in
Brandt.Products.ForkWidth6 in
Carriage60 in

Features

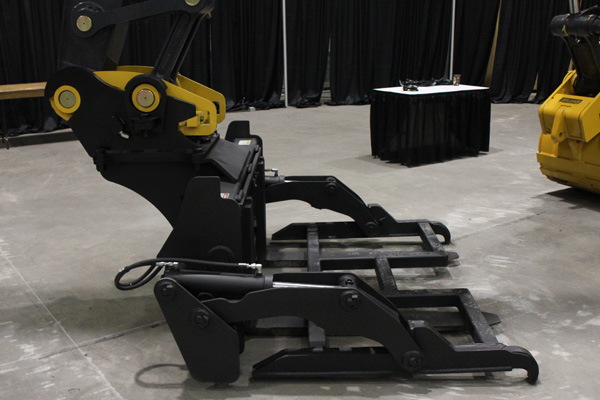

  • The drop-down cylinder configuration eliminates the outboard towers, which provides unparalleled visibility.
  • The frame provides additional visibility by using an open center design to enhance operator friendliness.
  • A dual cylinder overarm clamp is used to provide positive clamping force in order to secure various lengths of pipes to the fork tines.
  • The pressure of the clamp is maintained by a 1500 psi valve which protects the overarm from spike' loads, yet still provides ample clamping force under normal working conditions.

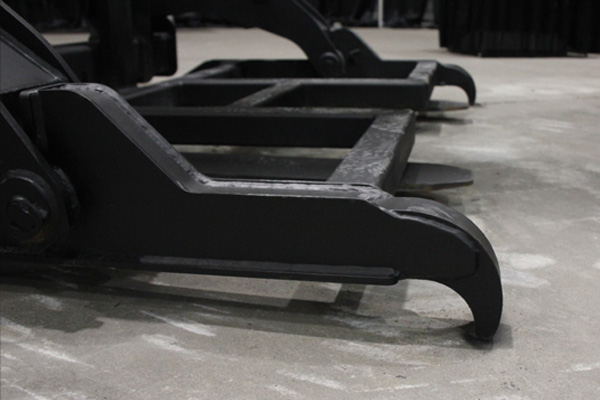

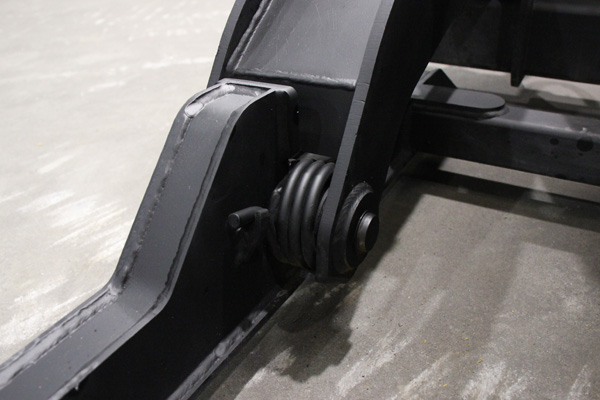

  • Hooked spring loaded paddles are used in order to flex and maintain full contact at all times.
  • Hydraulic components are sheltered and a very clean and protected hose routing reduces broken fittings and damaged hoses meaning less downtime.
  • The unique integrated fork swing out lock system holds the forks in place to prevent bouncing.

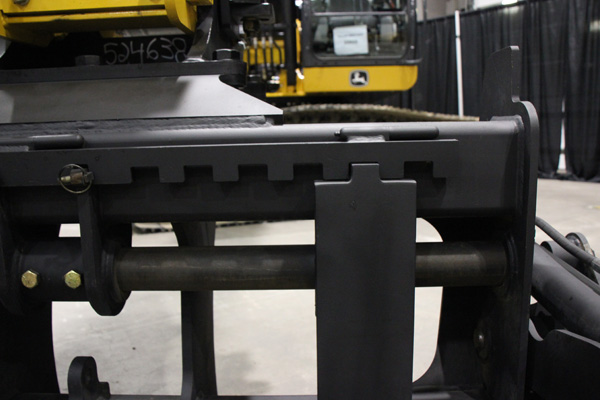

  • Fork positioning is made simple with the notched top rail that can be un-hinged for the forks to be adjusted to various widths for specific pipe handling jobs.

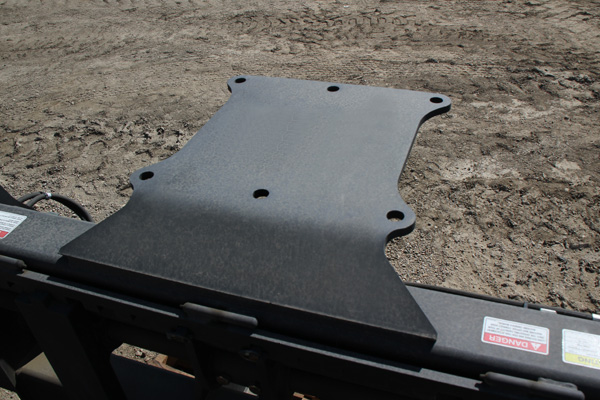

  • An interchangeable bolt-on lugging plate is used for added convenience for running the same grapple on either 120, 150 or 200 sized machines.

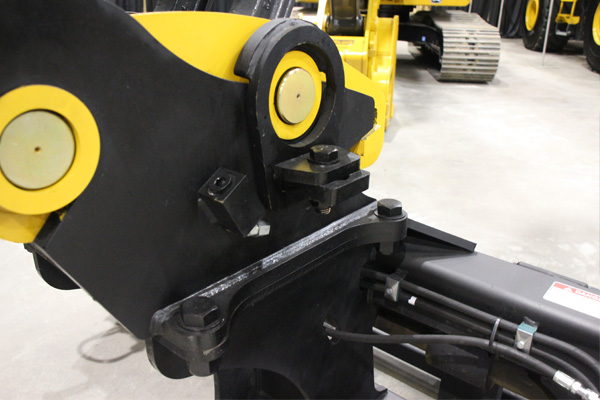

  • Lugging includes bolt on collars on the coupler link boss that provide additional safety measures in securing the attachment to the machine.
