End Drift

EndDrift

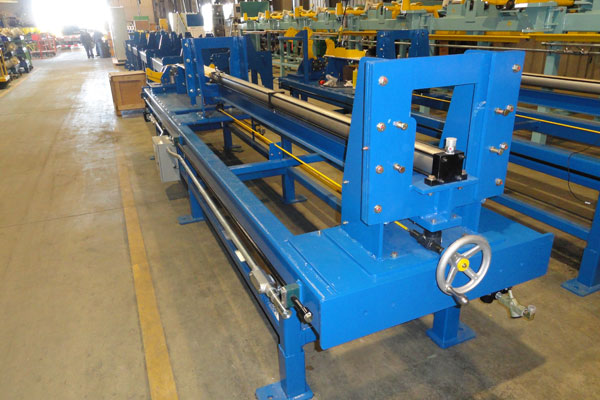

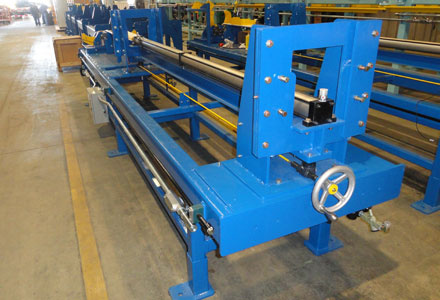

The Brandt End Drift acts as a gauge to verify the end of the pipe was not crushed or deformed by the lathe or the bucker during chucking. The End Drift runs a plug through the end of the pipe and if it can pass through without catching, the pipe passes inspection.




Specifications

End Drift
Operation ModesFully-automatic / Semi-automatic / Manual
Product SpecificationAPI Standards
Pipe Diameter Range2.375 - 7.625 " OD
Pipe Length Range20 - 47 ft
Power460V / 60Hz / 3 Phase

Features

Throughput Requirements

  • The End Drifter is designed for maximum throughput, with drag chains and transfer conveyor to minimize indexing time.

Functionality

  • The End Drifter is used to check pipe ID for a specified length from ends. If the drift plug can go through a pipe for this specified length, the pipe is OK. Otherwise the pipe fails.
  • The end drift works similarly to the Full body drift, but is only 8 feet long.
