Rock Bolter

Rock-Bolter

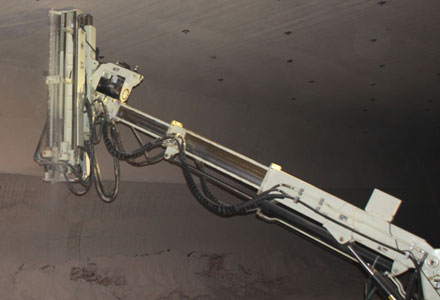

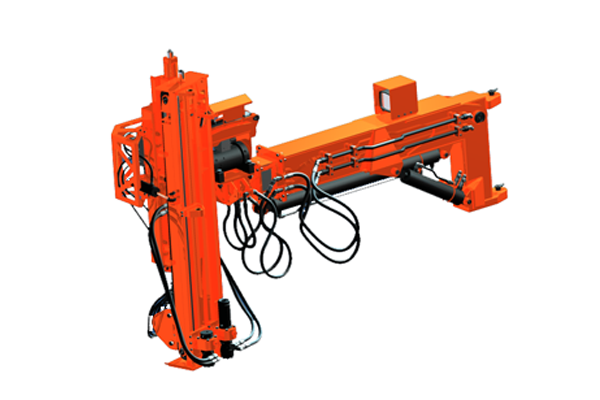

The Brandt Rock Bolter is designed for underground mining environments prone to heaving and rock fall, such as potash and soft rock mines. Drilling and installing bolts in the walls and roof of the mine stabilizes the rock and increases mine safety. The Rock Bolter features a two-stage, telescoping boom with a mast containing the drilling and bolting equipment on the end. This innovative design allows you to efficiently and accurately install bolts into your mine.

Specifications

Rock Bolter
Weight3700 lb
Length128 in
Power TypeHydraulic

Features

Durability

  • Low maintenance, high strength design
  • Ability to install a bolt in in a 17'-6" high ceiling
  • Tilt and rotation function of the mast allows bolt installation in uneven roof and walls

Consistency

  • Consistently torque bolts to mine site requirements
  • Repeatable accurate indexing and is adjustable by field personnel

Visibility

  • Two stage boom design that provides maximum extension but still allows the mast to be retracted providing good visibility in travel mode
  • Optimum bolt visibility allows the operator to see the mechanical shell entering the hole
  • Auxiliary lighting directed to the primary drilling area.3

Bolting Capacity:

  • Vertical Ceiling Reach: Up to 5334mm (17'6")
  • Articulation: +/- 30deg from center
  • Mast Rotation: Mast is mounted on a rotary actuator, allowing it to rotate fully +/- 90deg from vertical to bolt into either side wall
  • Tilt
    • 40deg forward from center
    • 15deg backward from center

Options:

  • Bolt Configurations
    • Can be configured for different bolt sizes
    • Can be configured to install mechanical or epoxy secured bolts
  • Remote Operation
  • Multi Bolt Carriage
