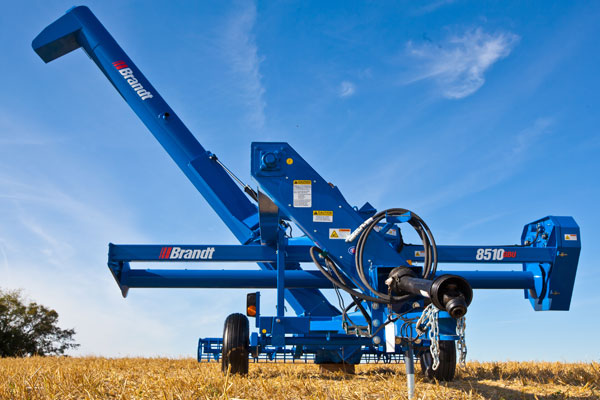

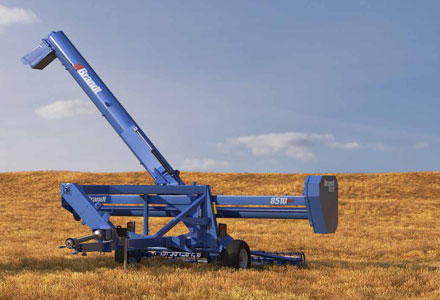

8510 GBU Grain Bag Unloader

Technical Specifications
8,500 bu/hr
50 Horsepower


Rebates on Brandt Grain Bag Unloaders
*Limited time offer, some conditions apply. Learn More

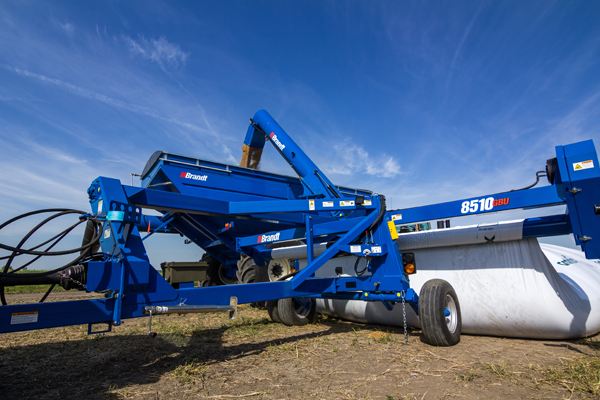

The 8510GBU grain bag unloader makes emptying bags of any length quick and easy. With the ability to unpack grain at 8,500 bu/hr and a heavy-duty design, this grain bag unloader is a reliable part of your grain storage system. Get your grain out of the bag, into the truck and on the market faster and easier than ever.

Specifications

8510 GBU Grain Bag Unloader
Capacity8500 bu/hr
Auger Diameter17 in
Height103 - 209 in
Weight5760 lbs

Features

10” Cross Auger

The 10” diameter cross auger with 3/16” extended life flighting enables quick unloading into the truck. The grain bag unloader fits within the space of the 10’ bag to limit outside debris coming in contact with the grain.

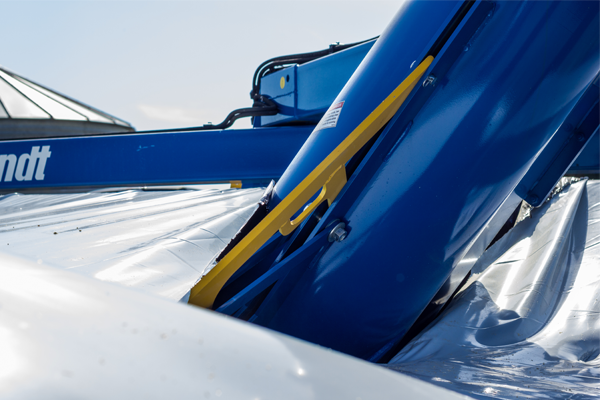

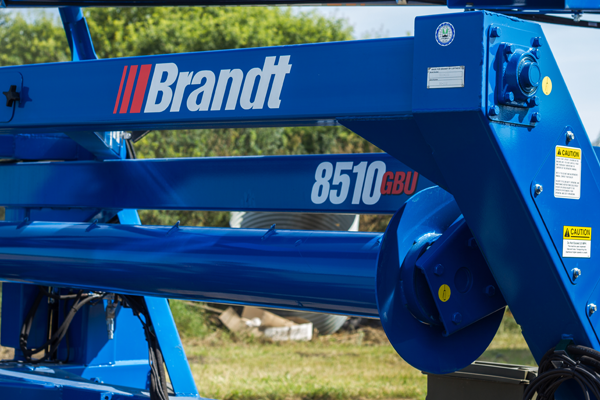

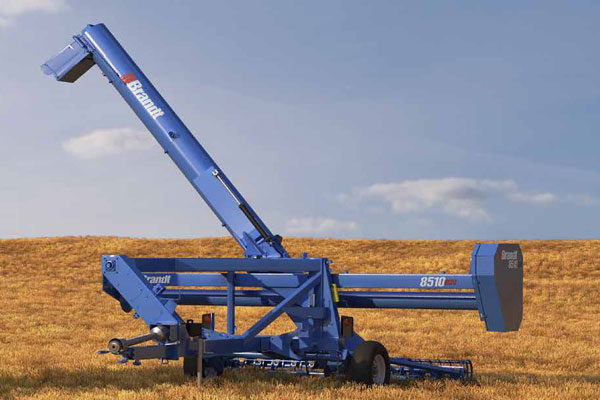

17” Main Auger

The grain bag unloader has a hydraulically folding 17” main auger with 1/4" thick flighting which can unload 10’ bags at a rate of 8,500 bu/hr and requires only 50 to 80 horsepower. Transportation is fast and easy, just fold up the main auger and swing roller to transport position and drive away.

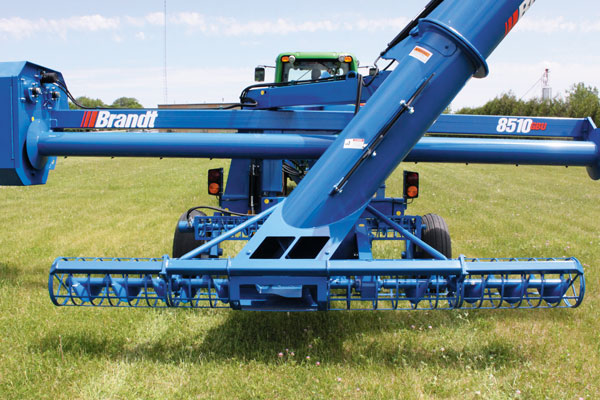

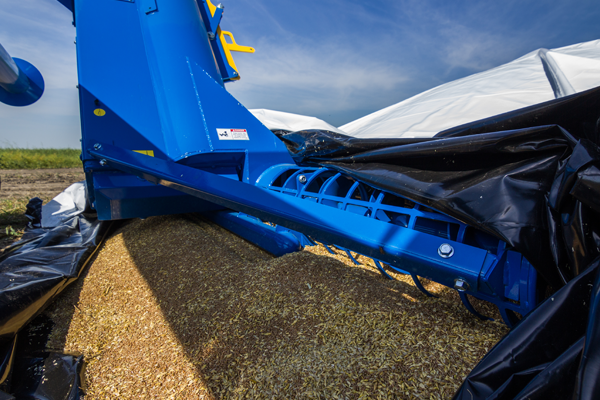

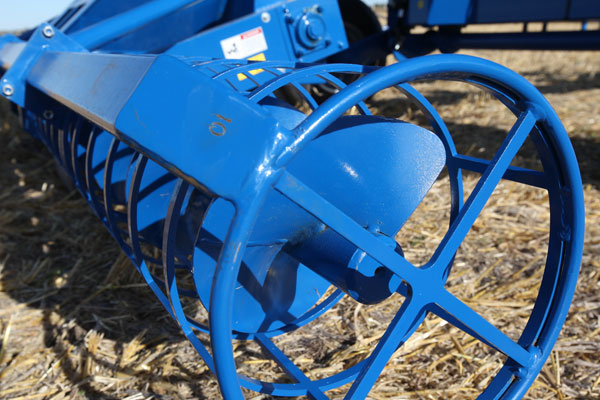

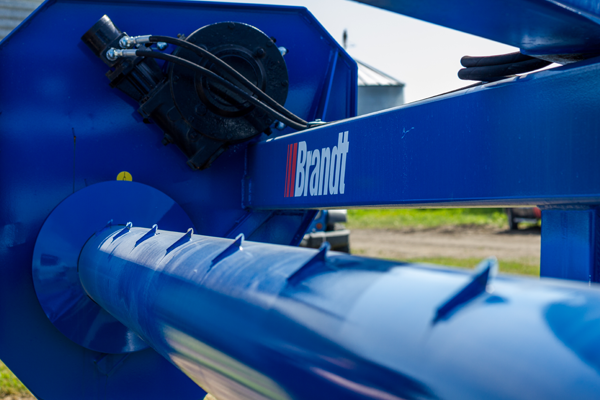

Bag Roller

The hydraulically driven 16’ bag roller features protruding points every 17 1/4" to securely grip the bag for easy unloading.

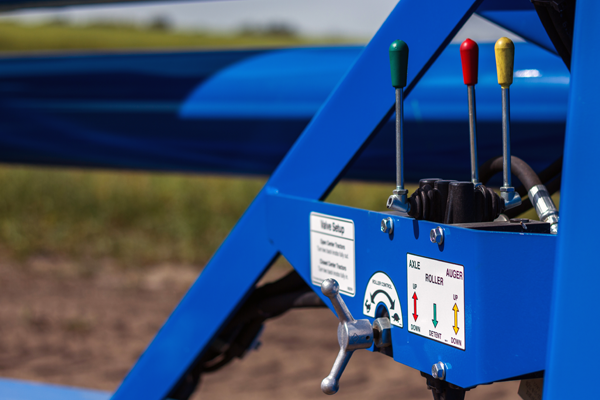

Ground Level Hydraulic Controls

Operator controls are mounted at ground level for maximum control while unloading and have a four function hydraulic valve to control all grain bag unloading functions. A uniquely designed, self-storing knife can be set up or stored in seconds without the use of tools. The spring loaded clutch can also be disengaged without the use of tools for easy removal of the bag.


Spring Loaded Clutch

The grain bag roller is equipped with an easily accessible spring-loaded clutch that can be engaged and disengaged without the use of tools. This makes for a smoother, hassle-free grain bag unloading process.

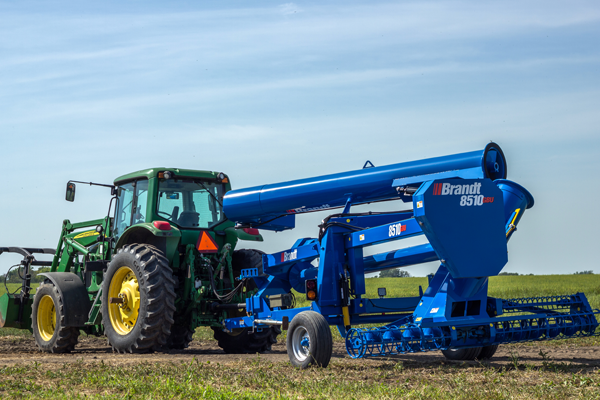

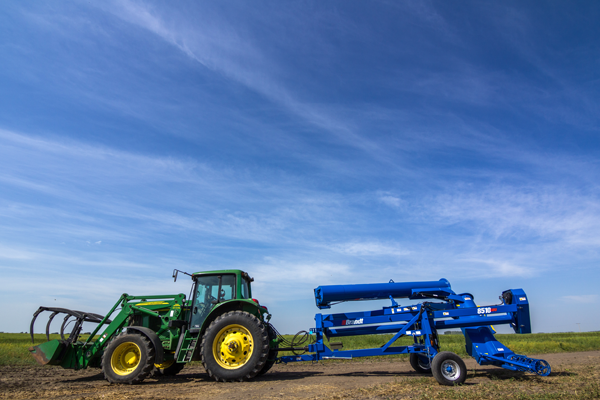

Easy Transport

The main auger quickly folds into the transport position with narrow, easy-to-handle dimensions, saving you valuable time.


Available Attachments
  • 9' Bag Unload Kit
  • Third Wheel and Tire Kit
  • Work Light Kit
